Description

Advanced Lithium Energy Storage for Residential & Commercial Solar Systems

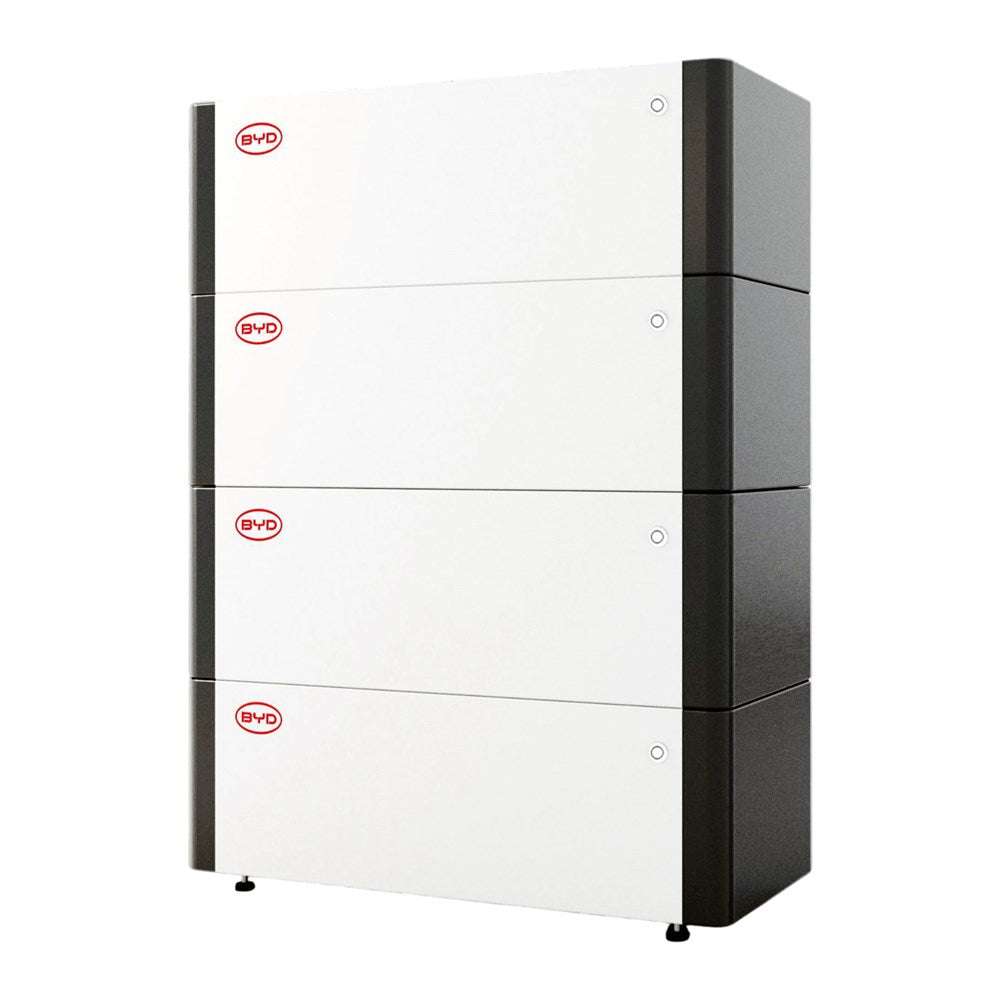

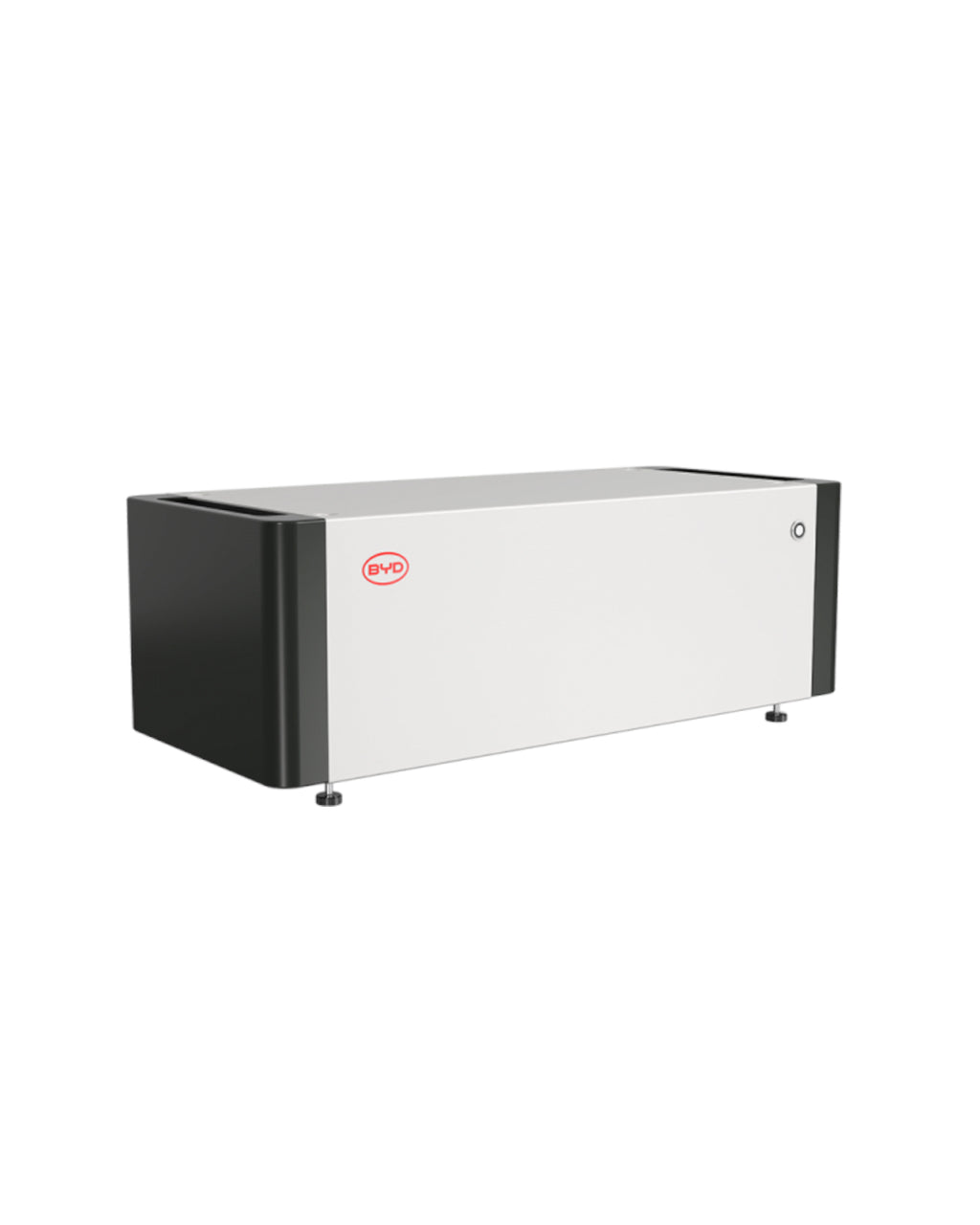

The BYD Battery-Box LV5.0+ is a high-performance lithium iron phosphate (LFP) energy storage battery designed to deliver safe, reliable, and scalable energy storage for modern solar power systems. With a usable energy capacity of 5.12kWh per module, the LV5.0+ provides flexible expansion capabilities, allowing up to 32 modules in parallel for a maximum capacity of 163.84kWh.

Designed for on-grid, backup, and off-grid solar systems, this modular battery solution provides homeowners and businesses with reliable energy independence, efficient solar storage, and long-term performance.

Available through US Solar Enterprises, offering trusted solar energy storage solutions.

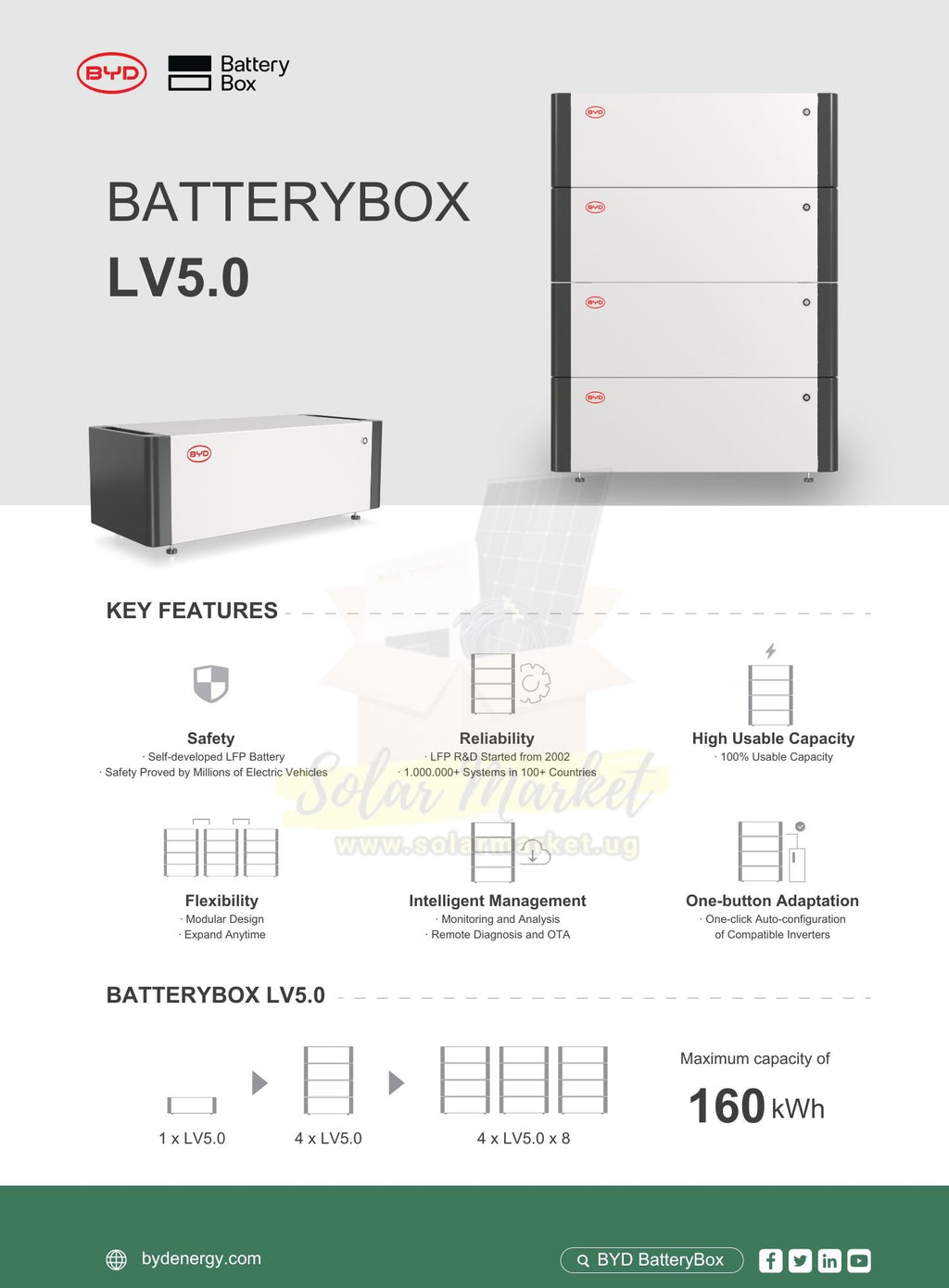

Key Features

Advanced Safety

Built with LFP battery technology, known for high safety, thermal stability, and long service life.

Reliable Performance

Developed with BYD’s industry-leading battery technology used in millions of EVs worldwide.

High Performance

Supports 1C charge and discharge rate with 100% depth of discharge (DoD).

Flexible Scalability

Expandable up to 32 modules in parallel, reaching 163.84kWh maximum capacity.

Easy Installation

Plug-and-play design with power cable connections and auto configuration.

Intelligent Management

24/7 monitoring and remote diagnostics through the BYD Energy App.

Wide Compatibility

Compatible with leading inverter brands such as Victron, GoodWe, Deye, Solis, SMA, and others.
Technical Specifications
  • Model: Battery-Box LV5.0+

Performance

  • Usable Energy: 5.12 kWh
  • Max Charge / Discharge Current: 100 A
  • Peak Charge / Discharge Current: 200 A (10 seconds)
  • Nominal Voltage: 51.2 V
  • Operating Voltage Range: 40 – 58.4 V
  • Round-Trip Efficiency: ≥95%

System Capacity

  • Maximum Parallel Modules: 32
  • Maximum Capacity: 163.84 kWh

Physical Specifications

  • Dimensions (H × W × D): 195 × 625 × 285 mm
  • Weight: 45 kg
  • Installation Mode: Floor installation

Environmental Conditions

  • Charging: 0°C – 55°C
  • Discharging: -20°C – 55°C
  • Storage Humidity: 5% – 95%
  • Maximum Altitude: < 4000 m
  • Protection Level: IP20

Communication

  • Communication Interface: CAN / RS485
  • Optional Accessories:
    BYD Smart WiFi / LAN Module

Certifications

  • Safety Standards: CE / IEC62619 / UN38.3
  • Warranty: 10 Years

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
What is the capacity of the BYD Battery-Box LV5.0+?

Each module provides 5.12kWh usable energy capacity.
Can the battery be expanded?

Yes, the system supports up to 32 modules in parallel, reaching 163.84kWh total capacity.
What type of battery technology is used?

The battery uses Lithium Iron Phosphate (LFP) technology for enhanced safety and lifespan.
Is the battery compatible with major solar inverters?

Yes, it is compatible with brands like GoodWe, Victron, Deye, Solis, SMA, and others.
Can the battery work in off-grid systems?

Yes, it supports on-grid, backup, and off-grid solar applications.
