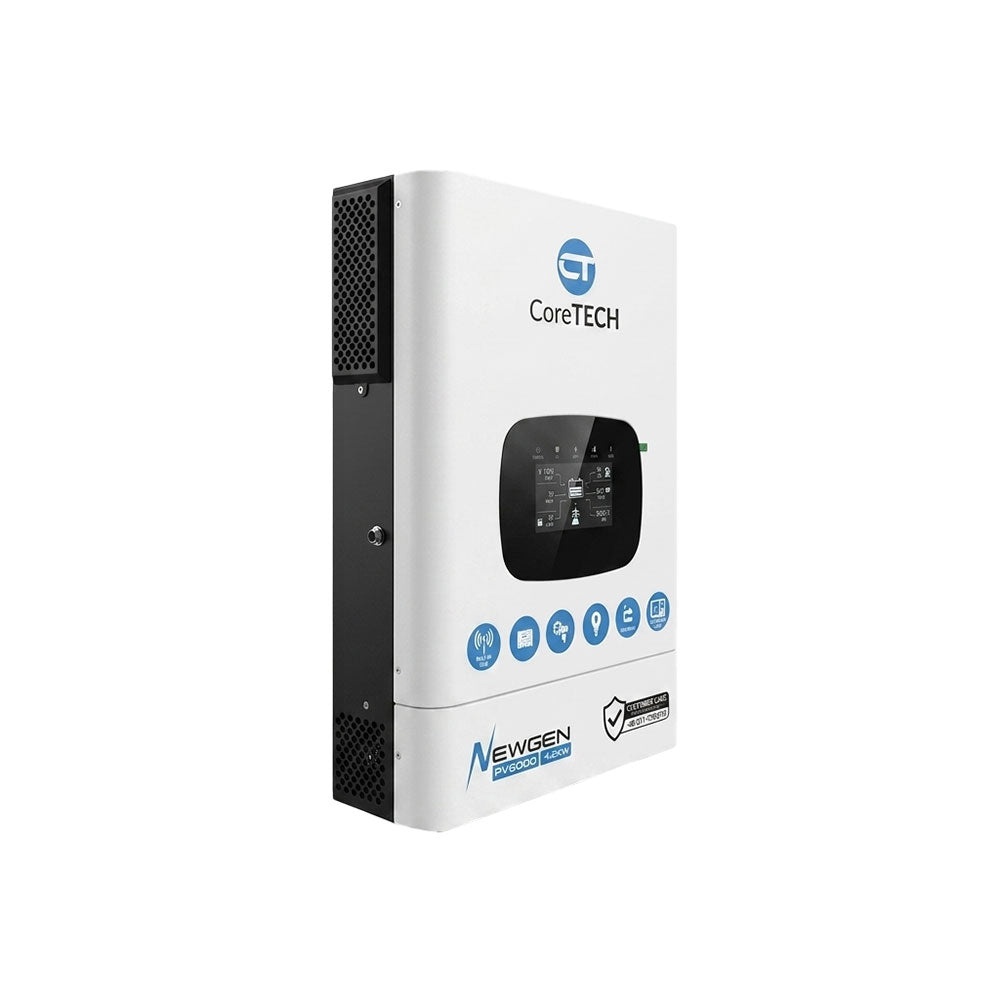

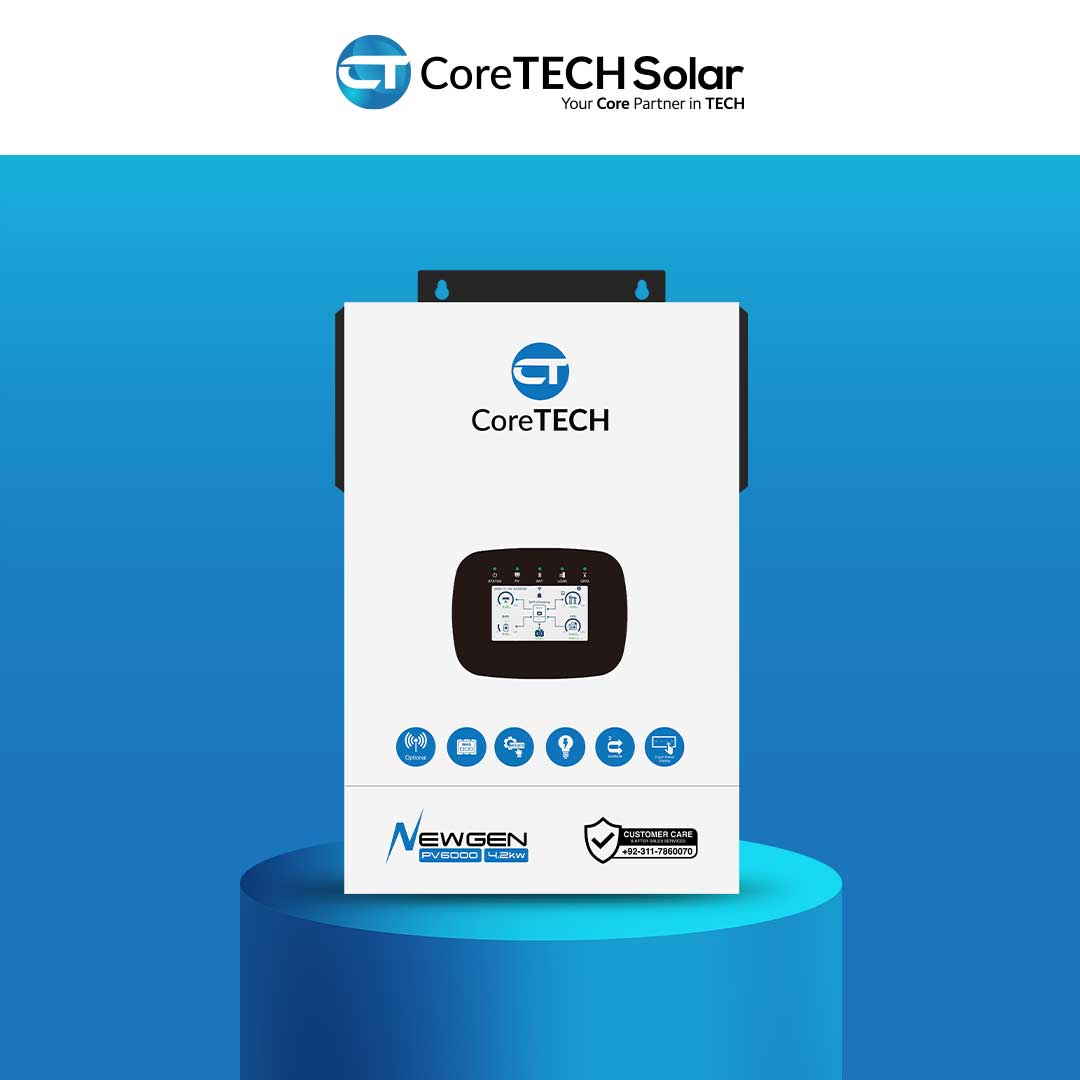

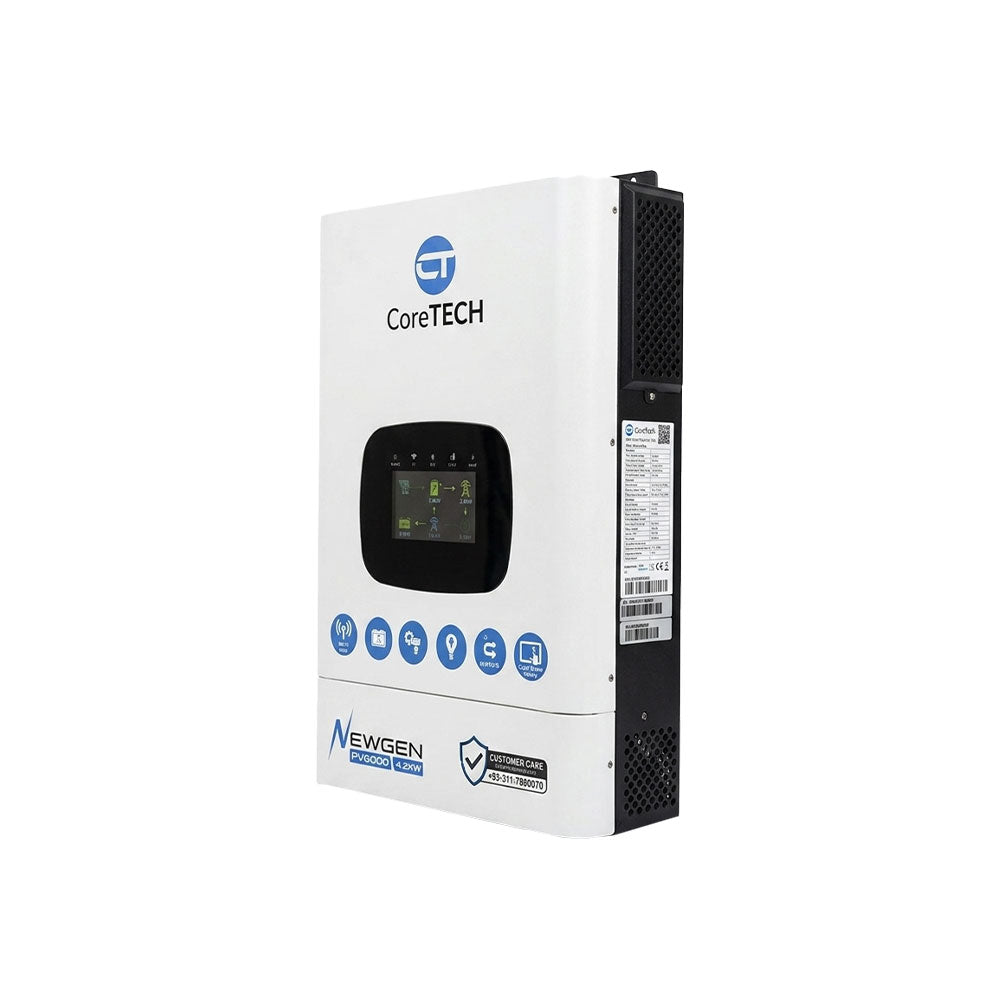

CoreTECH NewGen PV6000 4.2KW Hybrid Inverter

CoreTECH NewGen PV6000 4.2KW Hybrid Inverter

Rs.83,000.00
Skip to product information
CoreTECH NewGen PV6000 4.2KW Hybrid Inverter
  • CoreTECH NewGen PV6000 4.2KW Hybrid Inverter
  • CoreTECH NewGen PV6000 4.2KW Hybrid Inverter
  • CoreTECH NewGen PV6000 4.2KW Hybrid Inverter
CoreTECH NewGen PV6000 4.2KW Hybrid Inverter

CoreTECH NewGen PV6000 4.2KW Hybrid Inverter

Rs.83,000.00
Description

The CoreTECH NewGen PV6000 4.2KW Hybrid Solar Inverter is a reliable and high-performance solution for homes and mid-sized solar systems. Designed to maximize solar efficiency, it features advanced MPPT technology, high PV input capacity, and pure sine wave output for stable power.

With fast UPS-level switching (≤4ms), smart load management, and strong charge/discharge capability, it ensures uninterrupted and efficient energy usage. Built-in WiFi monitoring, battery compatibility, and parallel support make it a flexible and intelligent choice for dependable off-grid power.
Key Features
  • Parallel Connection – Parallel connection with up to 9 units
  • Enhanced Overload Capacity – 2 times the rated power for 5 seconds
  • High-Power Module Compatibility – Higher PV input current up to 18A
  • Smart Load Management – Dual AC outputs to power loads on demand priority
  • Seamless Switchover – UPS-level switching time ≤4ms
  • Efficient Battery Charge/Discharge – Max. 120A charge current | Max. 137A discharge current
  • Remote Monitoring – Built-in WiFi module for HaiPower monitoring
  • Touch Sceen – 4.3” 800 x 480 interactive display without physical keys

Warranty: 5 Years*
Technical Specifications

Model / Series: FSD-4.2K1P-BL-G3 / NewGen PV6000

Rated Capacity: 4.2kW (4200W / 8400VA peak power)

Nominal Battery Voltage: 24V DC

Compatible Battery Types: Lithium-ion and Lead-Acid (with lithium activation support)

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
What is the rated power output?

It delivers a continuous 4.2KW (4200W / 4200VA) output, with a surge capacity up to double the rated power for short motor starts.
Can it run an air conditioner?

one inverter AC alongside standard household appliances (fans, lights, and a fridge), but is not built to run two ACs simultaneously.
Does it support net metering?

Yes, it is a fully hybrid grid-tied inverter and is eligible for WAPDA net metering.
What battery voltage does it use?

It operates on a 24V nominal battery system (with an operating range of 20V to 30V)
