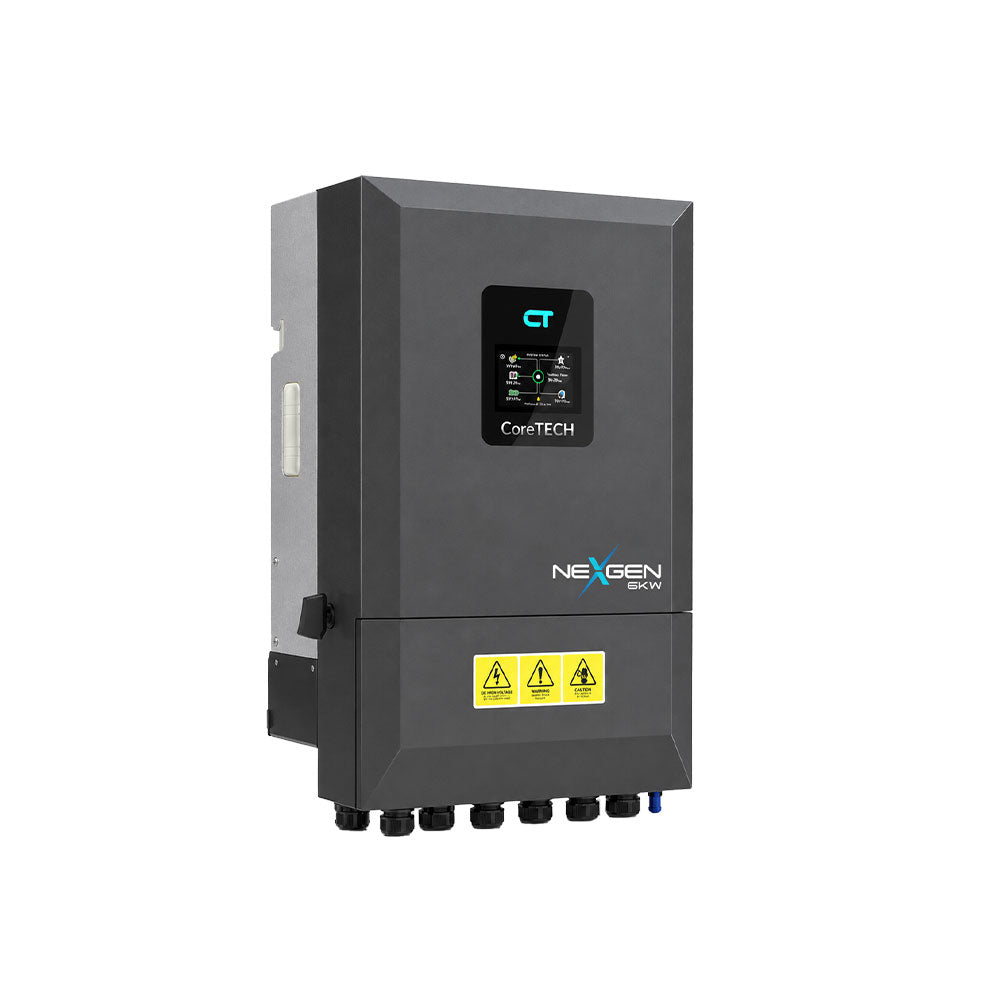

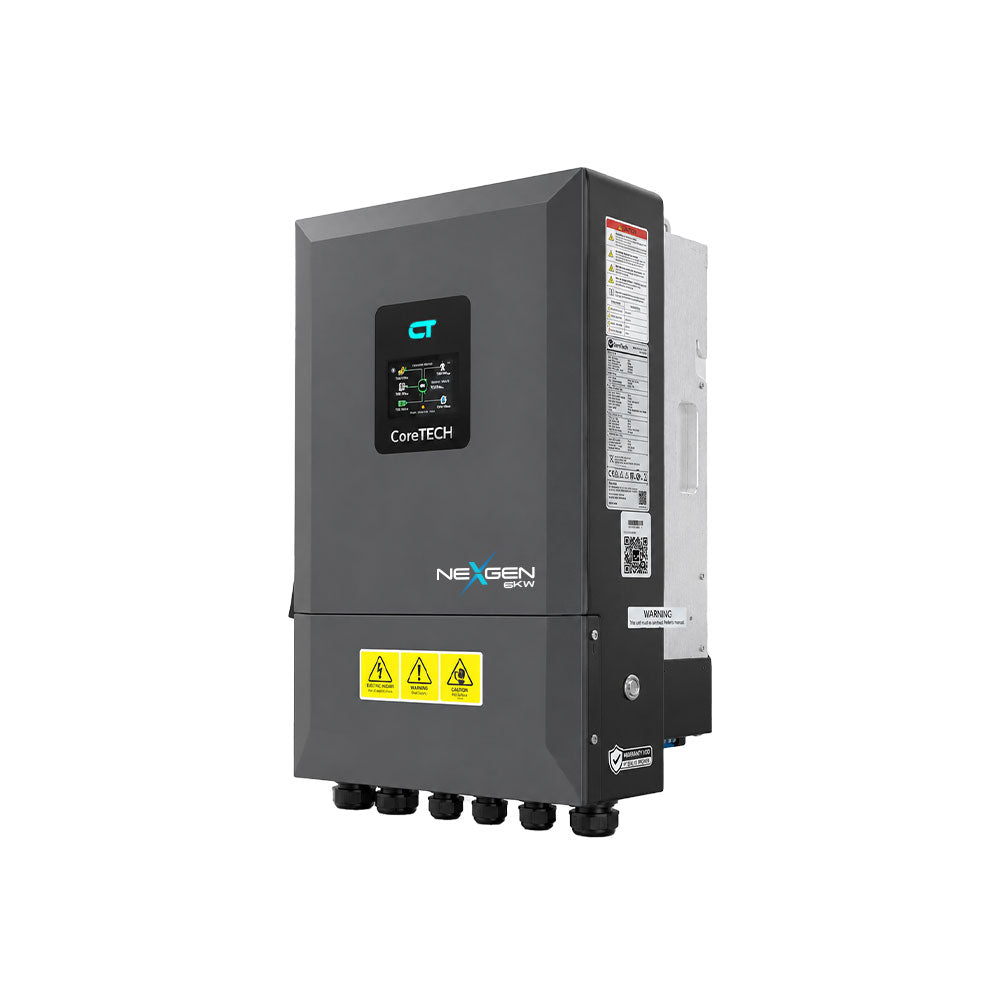

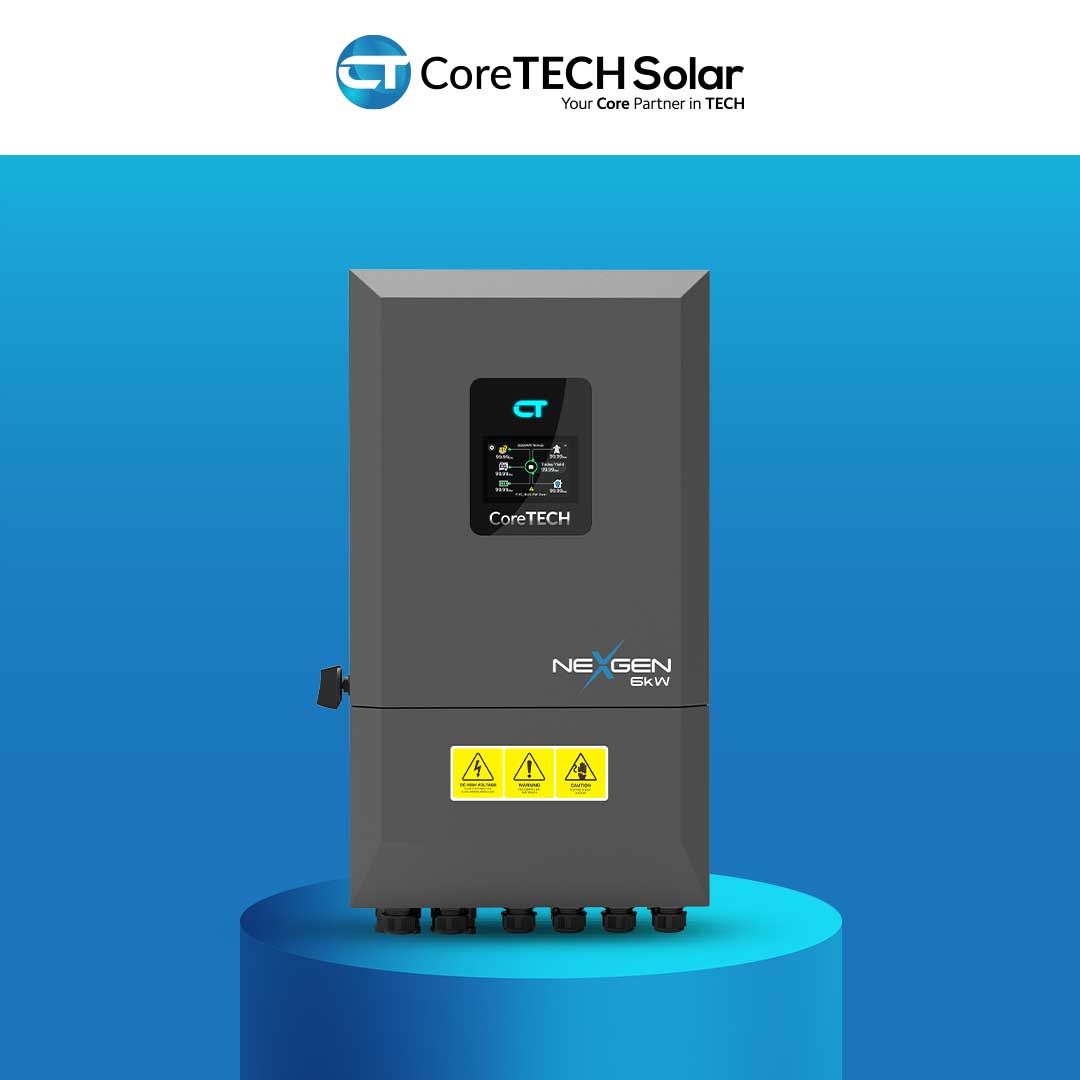

CoreTECH NexGen PV12000 6KW Hybrid Inverter

Max. PV Access Power: 12,000W
Max. PV Input Power: 9,000W
Max. Input Voltage: 550V
Start-up Voltage: 60V
MPPT Voltage Range: 90V–450V
Number of MPPT / Strings: 2 MPPT trackers (Max input current 20A / 20A)

Rs.179,000.00

CoreTECH NexGen PV12000 6KW Hybrid Inverter

Name: CoreTECH NexGen PV12000 6KW Hybrid Inverter
Brand: US Solar Enterprises
Price: 179000.00 PKR
Availability: InStock

Rs.179,000.00

Explore Full Specifications

The CoreTECH NexGen PV12000 6KW Hybrid Solar Inverter is a powerful and intelligent energy management solution designed for residential and small commercial solar systems. Engineered to maximize solar generation and provide reliable backup power, this hybrid inverter supports both grid-connected and off-grid operation. With advanced MPPT technology, fast UPS-level switching, and smart monitoring capabilities, it ensures efficient and stable power for modern solar installations.

12000W Solar Capacity – Supports up to 12kW PV access power for maximum solar generation
Dual MPPT Solar Charger – 90–450V MPPT range for improved solar harvesting efficiency
Pure Sine Wave Output – Provides clean and stable power suitable for sensitive electronics
High Surge Power Backup – Supports 2× rated output for 10 seconds for heavy appliance startup
UPS-Level Fast Transfer Time – <4ms switching for uninterrupted power supply
High Charging Capability – Up to 190A battery charge/discharge current
48V Smart Battery System – Compatible with lead-acid and lithium batteries with BMS communication
Advanced Monitoring & Communication – WiFi, Bluetooth, CAN, RS485, APP monitoring support
Smart Energy Management – Supports generator integration and programmable charge/discharge times
Durable Outdoor Design – IP66 protection, smart fan cooling, and operation up to 4000m altitude
