CoreTECH NexGen PV16000 8KW Hybrid Inverter

Rs.215,000.00

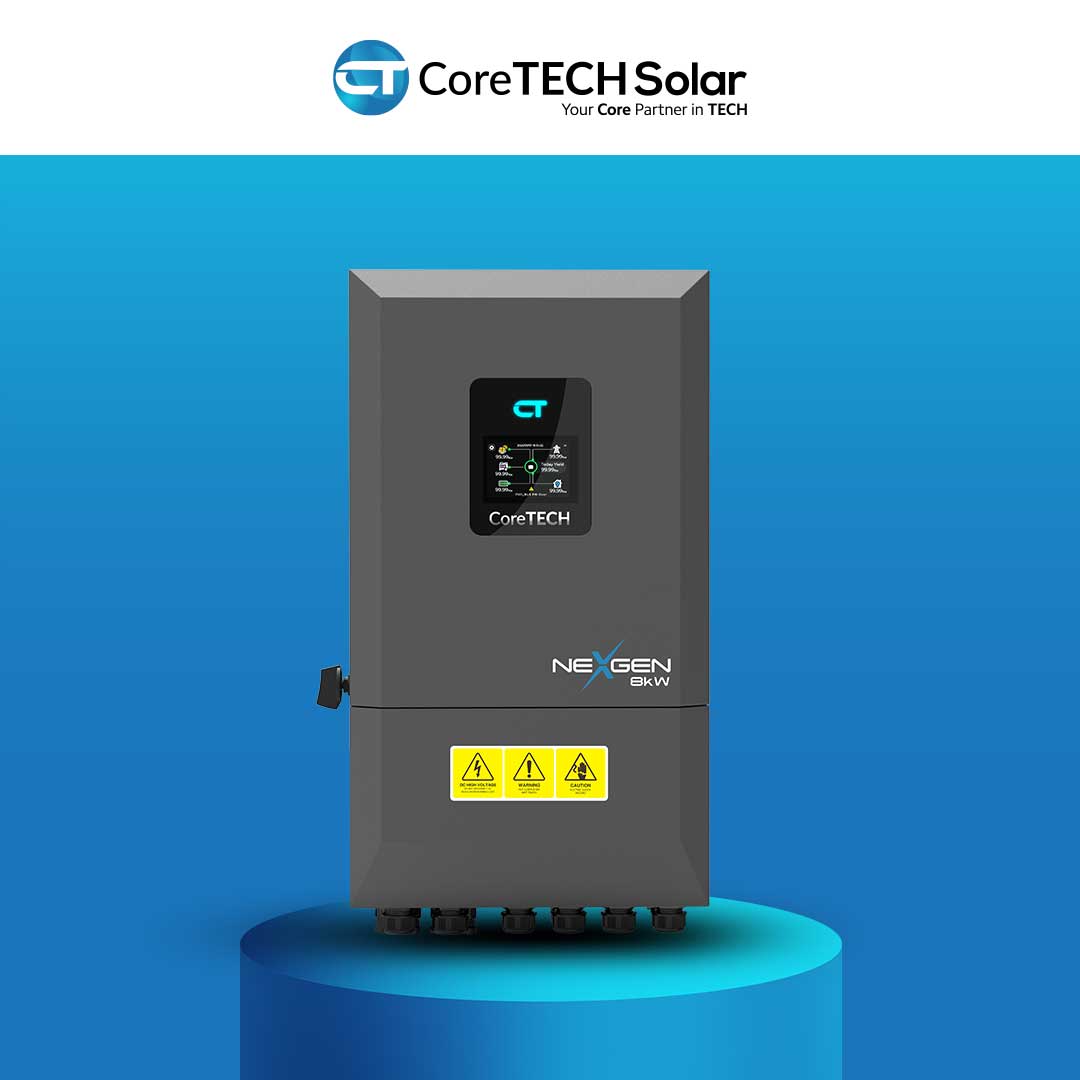

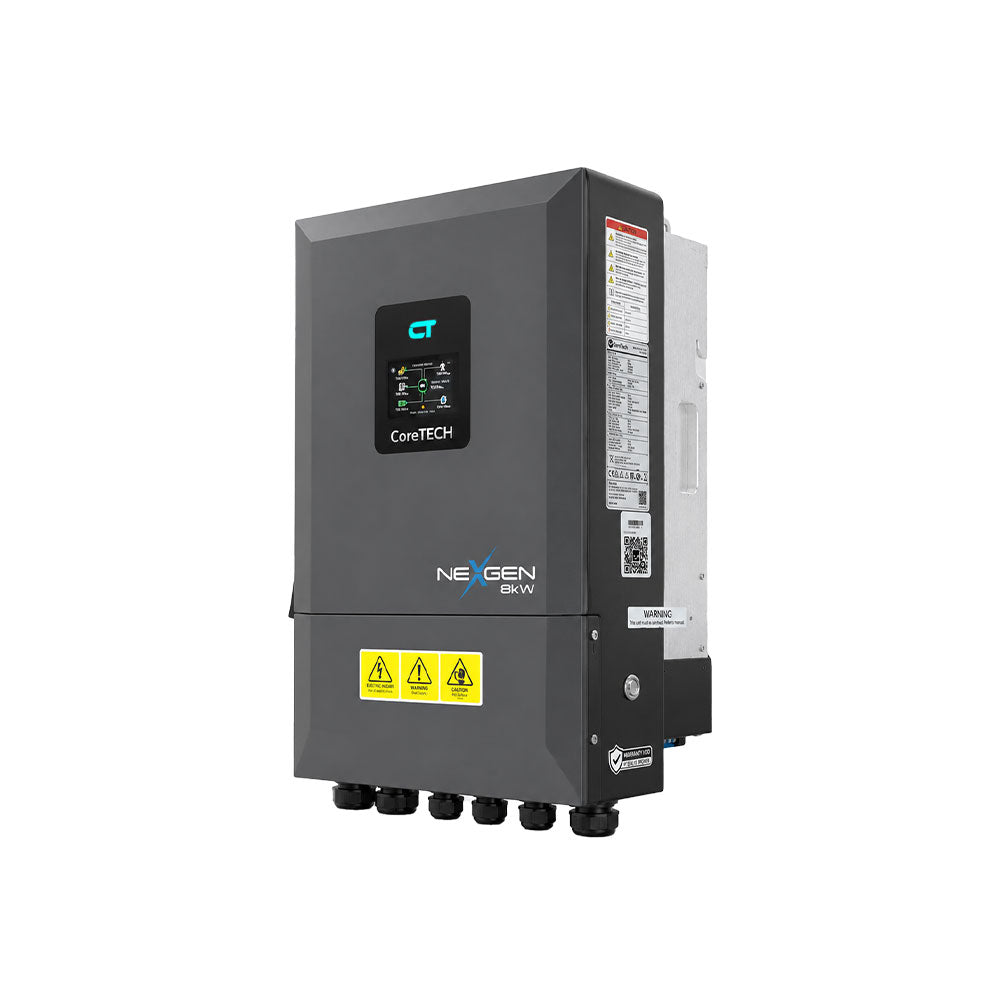

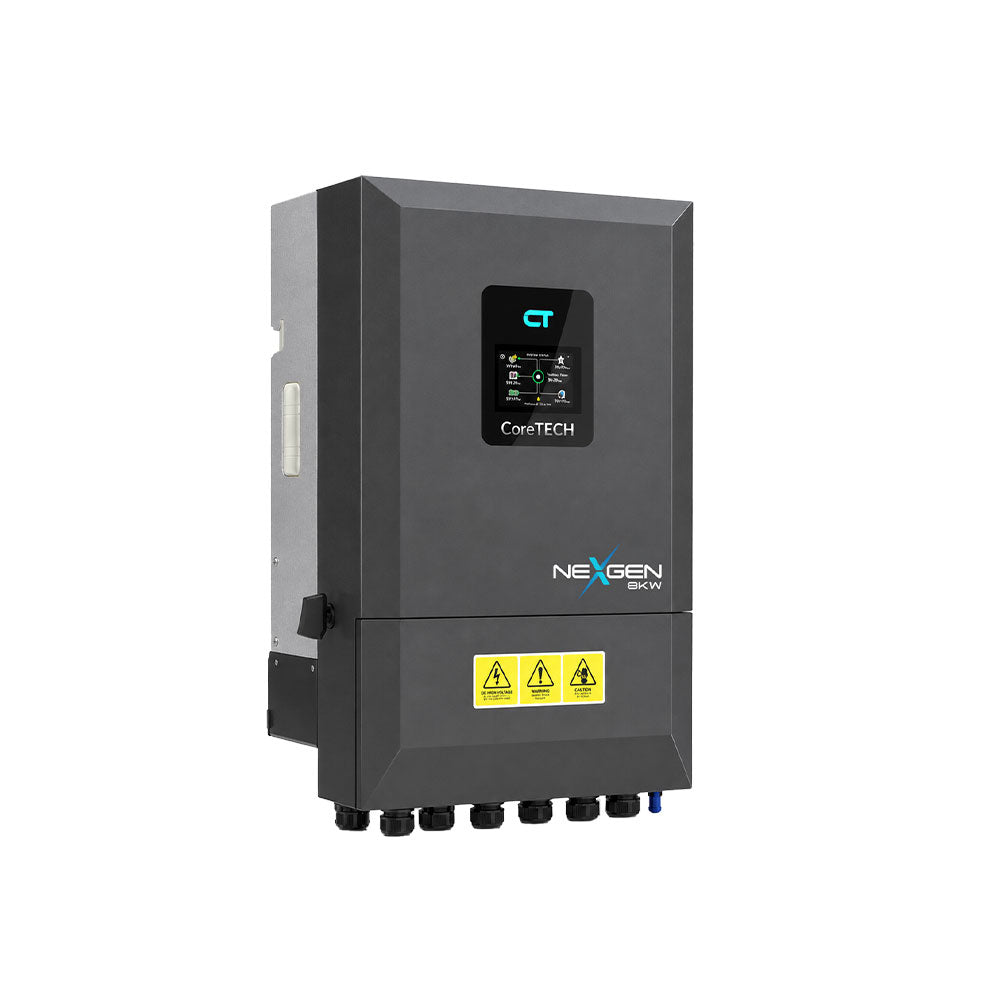

CoreTECH NexGen PV16000 8KW Hybrid Inverter

Name: CoreTECH NexGen PV16000 8KW Hybrid Inverter
Brand: US Solar Enterprises
Price: 215000.00 PKR
Availability: InStock

Rs.215,000.00

Explore Full Specifications

The CoreTECH NexGen PV16000 8KW Hybrid Solar Inverter is a powerful and intelligent energy management solution designed for residential and small commercial solar systems. Engineered to maximize solar generation and provide reliable backup power, this hybrid inverter supports both grid-connected and off-grid operation. With advanced MPPT technology, fast UPS-level switching, and smart monitoring capabilities, it ensures efficient and stable power for modern solar installations.

16000W Solar Capacity – Supports up to 16kW PV access power for maximum solar generation
Dual MPPT Solar Charger – 90–450V MPPT range for improved solar harvesting efficiency
Pure Sine Wave Output – Provides clean and stable power suitable for sensitive electronics
High Surge Power Backup – Supports 2× rated output for 10 seconds for heavy appliance startup
UPS-Level Fast Transfer Time – <4ms switching for uninterrupted power supply
High Charging Capability – Up to 190A battery charge/discharge current
48V Smart Battery System – Compatible with lead-acid and lithium batteries with BMS communication
Advanced Monitoring & Communication – WiFi, Bluetooth, CAN, RS485, APP monitoring support
Smart Energy Management – Supports generator integration and programmable charge/discharge times
Durable Outdoor Design – IP66 protection, smart fan cooling, and operation up to 4000m altitude

Warranty: 10 Years*

Rated Output Power: 8 kW (8.8 kVA Max Apparent Power)
Max PV Input Power / Capacity: Up to 12,000W to 16,000W PV access power
Battery System: 48V low-voltage smart battery system (compatible with Lead-Acid and Lithium-ion batteries with BMS)
Max Charge/Discharge Current: Up to 190A
MPPT Range: Dual MPPT solar charger (90V–450V or up to 550V max input voltage)
Transfer Time: Less than 4ms (UPS-level switching)
