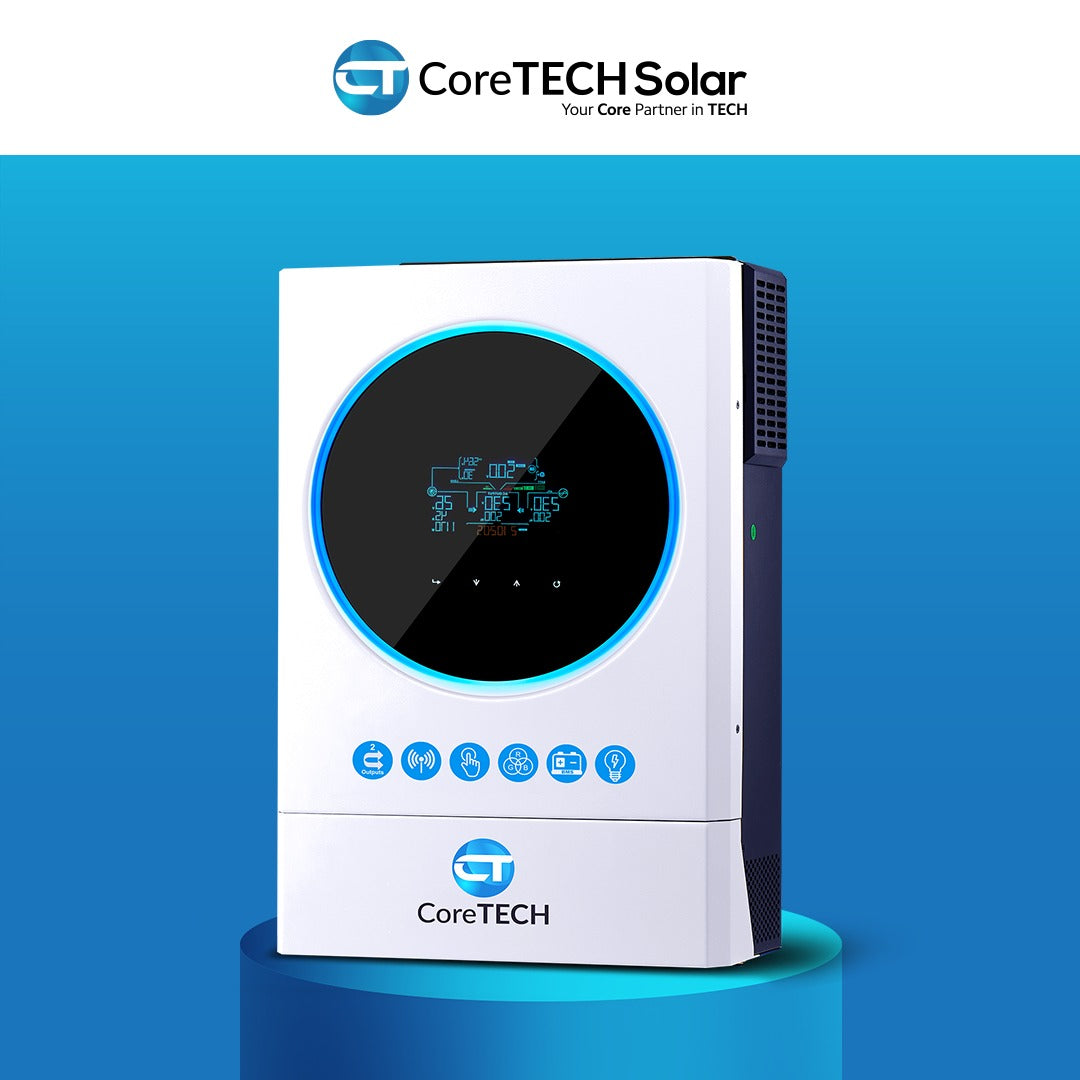

CoreTECH PV8000 6.2KW Hybrid inverter

CoreTECH PV8000 6.2KW Hybrid inverter

Rs.109,000.00
Skip to product information
CoreTECH PV8000 6.2KW Hybrid inverter
  • CoreTECH PV8000 6.2KW Hybrid inverter
CoreTECH PV8000 6.2KW Hybrid inverter

CoreTECH PV8000 6.2KW Hybrid inverter

Rs.109,000.00
Description

The CoreTECH PV8000 6.2KW Hybrid inverter is a next-generation solar inverter designed to deliver superior performance, intelligent energy management, and robust reliability. With a 6.2KW capacity, it’s ideal for larger residential setups and small commercial systems seeking maximum solar efficiency and energy independence.

Featuring cutting-edge MPPT technology, the CoreTECH PV8000 6.2KW Hybrid inverter ensures optimal energy conversion even during low-light conditions. Its sleek LCD display provides real-time monitoring, while built-in protections guard against voltage spikes, overheating, and system faults. Its silent operation and compact design make it a smart choice for modern solar installations.
Key Features
  • High PV Capacity: Supports up to 8000W solar input
  • Maximum PV Input Current: 27A
  • Rated Output Power: 6200W
  • Dual Output Design: Smart load management for essential & non-essential loads
  • Pure Sine Wave Output: Safe for sensitive electronics
  • 4.3” Color LCD Touch Button: User-friendly interface
  • Built-in Wi-Fi: APP-based remote monitoring
  • Programmable Power Priority: PV / Battery / Grid selectable
  • Self-Consumption First: Sell excess energy back to the grid
  • 48V Battery System: Compatible with lithium & lead-acid batteries
  • BMS Communication Port: Ready for lithium battery integration
  • Parallel Operation: Expandable up to 9 units
  • High Efficiency: Up to 96% DC-to-AC conversion
  • Protection Rating: IP21
  • Wide Operating Temperature: -10°C to 50°C

Warranty: 2 Years
Technical Specifications
  • Rated Output Power: 6,200W (6.2kW) pure sine wave
  • Maximum Solar PV Input: 8,000W
  • Max PV Input Current / MPPT: 27A (1 MPPT tracker)
  • MPPT Voltage Range: 120VDC to 430VDC (Max PV open-circuit voltage: 500VDC)
  • Battery Compatibility: 48VDC nominal system (supports lithium-ion and lead-acid with BMS communication)
  • Max Charging Current (Solar + AC): 120A

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
What is the continuous power output?

It provides a rated continuous AC output of 6,200W (6.2kW), giving you slightly more headroom than standard 6kW inverters to run heavy loads like dual air conditioners simultaneously.
Does it work without batteries?

Yes, like many modern hybrid units, it can operate with or without connected batteries, utilizing direct solar and grid power depending on the configuration.
What is the warranty period?

The standard indoor hybrid model (such as the PV8000 IP21 version) generally comes with a 2-year official warranty in Pakistan
