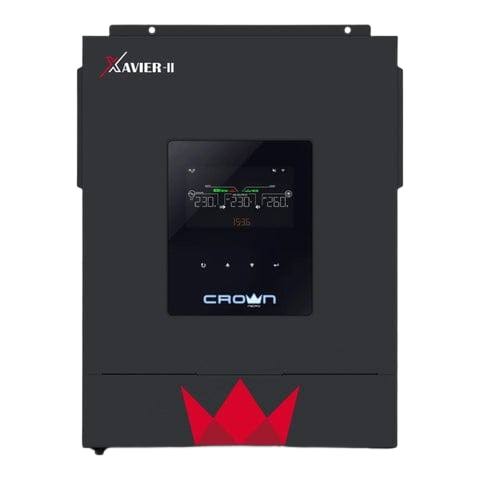

Crown Xavier 1.5kW Offgrid Inverter 1 Phase LV IP21 (5Y)

Crown Xavier 1.5kW Offgrid Inverter 1 Phase LV IP21 (5Y)

Rs.48,000.00
Skip to product information
Crown Xavier 1.5kW Offgrid Inverter 1 Phase LV IP21 (5Y)
  • Crown Xavier 1.5kW Offgrid Inverter 1 Phase LV IP21 (5Y)
Crown Xavier 1.5kW Offgrid Inverter 1 Phase LV IP21 (5Y)

Crown Xavier 1.5kW Offgrid Inverter 1 Phase LV IP21 (5Y)

Rs.48,000.00
Description

The Crown Xavier 1.5kW Offgrid Inverter is a compact and reliable solution for small residential setups. It combines efficient solar energy conversion with battery storage support, ensuring backup power during outages. With MPPT technology, smart monitoring, and easy installation, it offers an economical choice for households looking to maximize solar usage and reduce electricity costs.
Key Features
  • Off-Grid Inverter
  • Pure sine wave solar MPPT based inverter
  • Wide DC input range
  • Battery independent design
  • Maximum charging current 100A
  • Built-in anti-dust kit
  • Built-in 50A MPPT solar charger
  • Operating VDC 60~400
  • 2.5” LCD with touch pad
  • Battery equalization function to enabled to extend battery life cycle and performance
  • Output power factor 1
  • Thermal protection sensor
  • Wi-fi (Optional)
Technical Specifications
  • Rated Power: 1500W / 1500VA (Output surge power up to 3000VA)
  • Solar Charger Type: Built-in MPPT (Maximum Power Point Tracking)
  • Max PV Array Power: 1500W (MPPT range 60–400 VDC; max open circuit voltage 450 VDC)
  • Charging Current: Up to 100A max solar charge current and 80A max AC charge current
  • Battery Requirements: 24 VDC battery system (battery-independent design available in select sub-models)
  • Display & Control: 2.5" LCD screen with a touch panel
  • Protection & Extras: Built-in anti-dust kit, thermal protection, battery equalization, and optional Wi-Fi monitoring module

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
Does it work without batteries?

Most Crown Xavier 1.5kw off-grid/hybrid variants are designed to work with low-voltage batteries (12V), though specific sub-models feature partial battery-independent support.
How do I connect the Wi-Fi monitoring?

You can configure Wi-Fi using the Crown Cloud mobile app by connecting to the inverter’s built-in dongle network (starting with "DL") and entering your home router credentials.
What is the warranty for the Crown Xavier 1.5kW?

It typically comes with a brand or merchant warranty ranging from 4 to 5 years (often split as 1-year comprehensive plus service years depending on the distributor).
