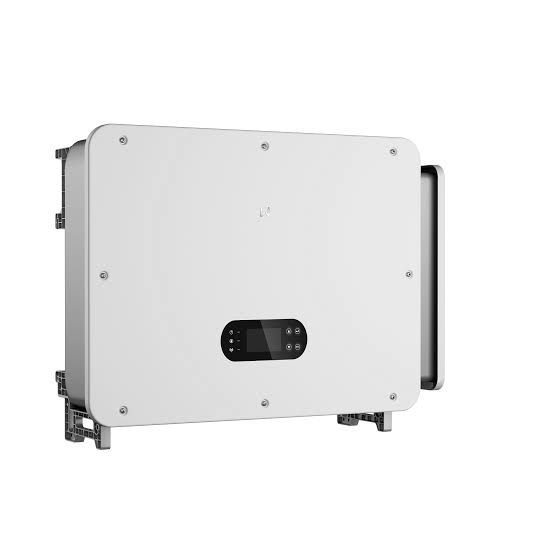

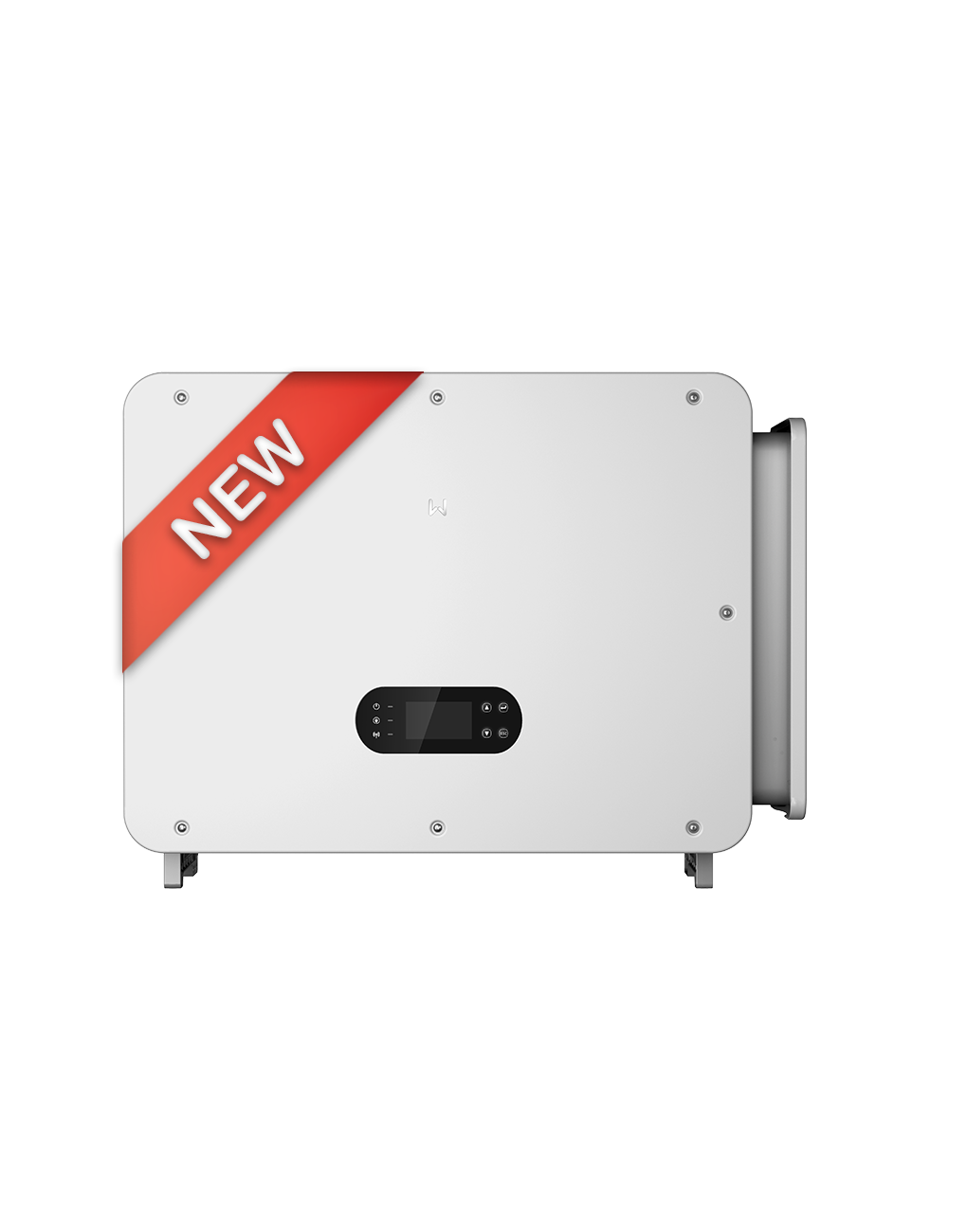

GoodWe 100kW Hybrid Inverter 3 Phase HV

Name: GoodWe 100kW Hybrid Inverter 3 Phase HV
Brand: US Solar Enterprises
Price: 1995000.00 PKR
Availability: InStock

Rs.1,995,000.00

Explore Full Specifications

GoodWe 100kW hybrid inverter is a key addition to GoodWe's Commercial and Industrial (C&I) portfolio. It features an efficient DC-coupled architecture well-suited for solar-plus-storage applications.

The inverter is compatible with a range of battery capacities and leverages intelligent operating modes to optimize system performance across various scenarios such as self-consumption, peak shaving, time-of-use, and grid support.

MPPT Count: 8 independent Maximum Power Point Trackers with up to 21A input current per string.
PV Oversizing: Supports up to 200% PV oversizing.
AC Overload: Delivers 150% AC overloading capacity for 10 seconds and 110% unbalanced load.
Battery Support: Dual independent battery inputs supporting up to 220A charge and discharge capability (1C charge/discharge).
Switching Time: Offers under 10 ms UPS-level emergency power switching via an external STS (Static Transfer Switch)

Max. Input Power: 200 kW
Max. Input Voltage: 1000 V
MPPT Operating Voltage Range: 160 ~ 950 V
Start-up Voltage: 200 V
Nominal Input Voltage: 620 V
Number of MPPTs: 8
Strings per MPPT: 2
Max. MPPT Current: 42 A per MPPT (21 A per string)
Max. Short Circuit Current: 55 A per MPPT

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions

It supports up to 200% PV oversizing (200,000W max PV input for the 100kW model) with 8 independent MPPTs and up to 21A per string.

It works with high-voltage batteries (typically 300V–800V or 200–865V ranges depending on the exact sub-series like Lynx C or BAT series) supporting dual independent battery inputs up to 220A.

Yes, it offers seamless UPS-level backup switching in under 10 milliseconds via an external Static Transfer Switch (STS) with up to 200A backup output capacity.
