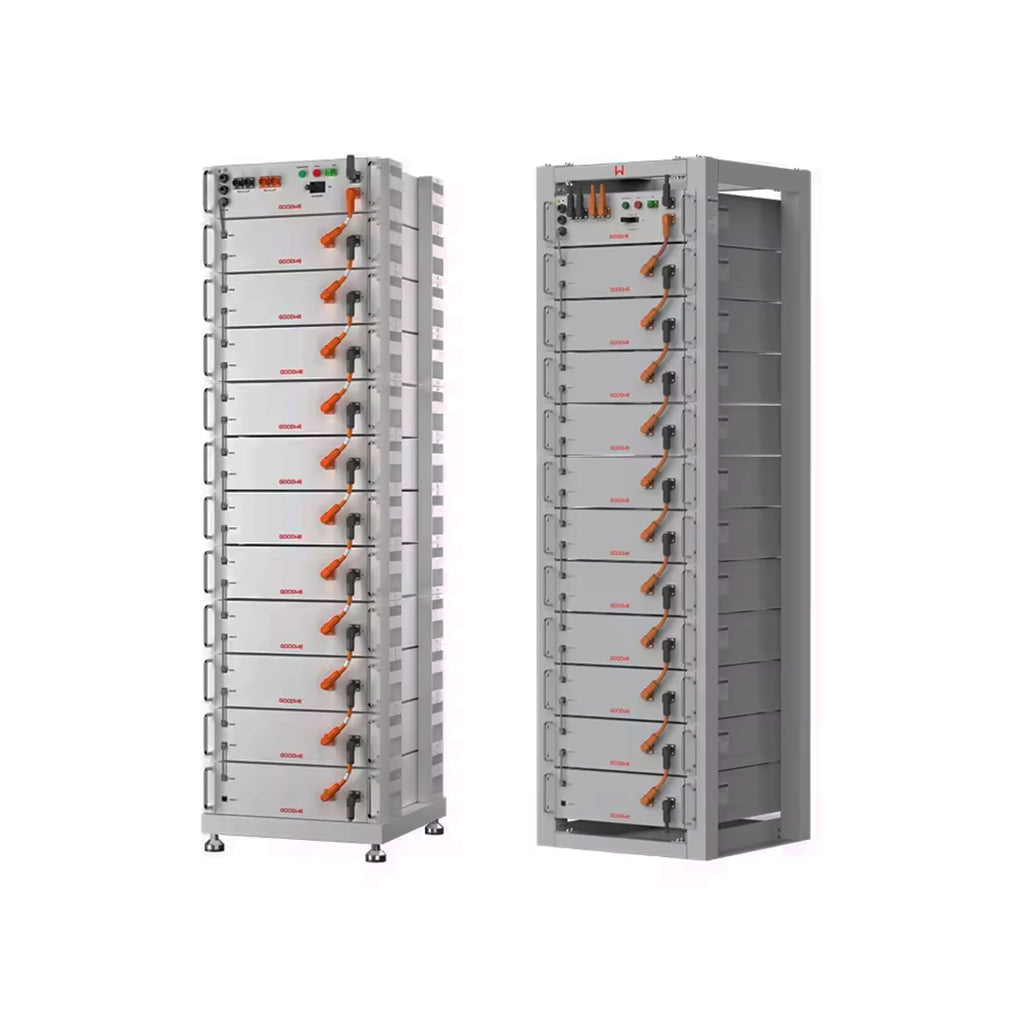

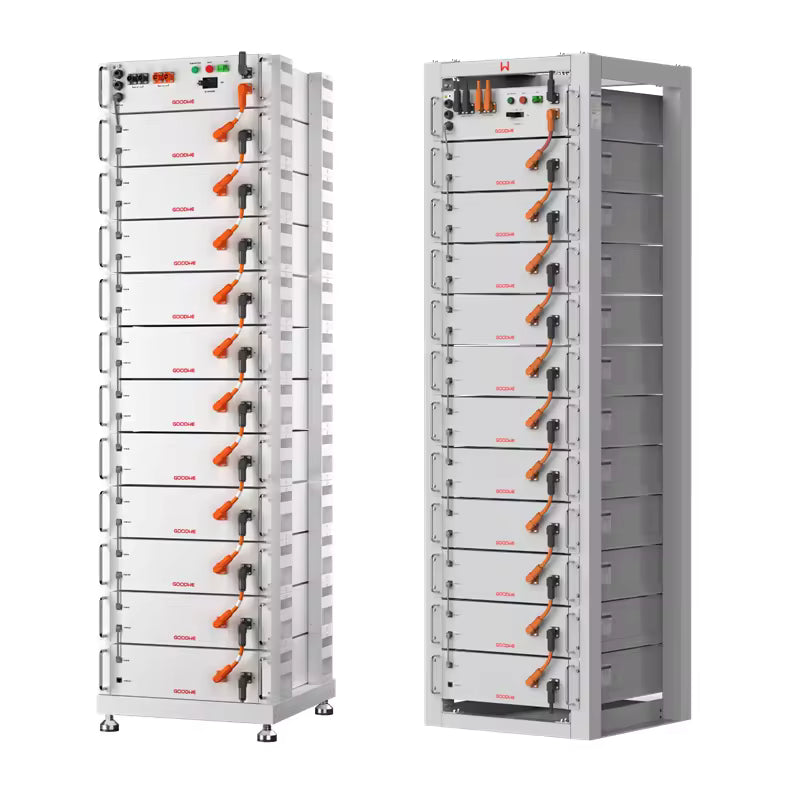

GoodWe BAT Series High Voltage Battery 51.2kWh / 56.3kWh Energy Storage System

Rs.4,500,000.00

GoodWe BAT Series High Voltage Battery 51.2kWh / 56.3kWh Energy Storage System

Name: GoodWe BAT Series High Voltage Battery 51.2kWh / 56.3kWh Energy Storage System
Brand: GoodWe
Price: 4500000.00 PKR
Availability: InStock

Rs.4,500,000.00

Explore Full Specifications

Commercial & Industrial High-Voltage Lithium Battery Solution

The GoodWe BAT Series High Voltage Battery is a powerful and reliable energy storage solution designed for commercial and industrial (C&I) solar systems. Available in 51.2kWh and 56.3kWh capacities, this advanced lithium battery system delivers exceptional performance, high efficiency, and long-term reliability for large-scale solar energy storage applications.

When paired with GoodWe ET Series hybrid inverters, the BAT Series forms a comprehensive and efficient solar energy storage solution that helps businesses manage energy consumption, reduce electricity costs, and maintain reliable backup power.

Available through US Solar Enterprises, the BAT Series battery delivers dependable performance for modern solar energy infrastructure.

High-Capacity Energy Storage

Available in 51.2kWh and 56.3kWh battery capacities, ideal for commercial and industrial energy storage applications.

Advanced LiFePO4 Battery Technology

Reliable LFP lithium battery cells provide superior safety, stability, and long service life.

Long Cycle Life

Delivers over 6000 charge cycles, ensuring long-term operational reliability.

Modular Rack Design

Rack-mounted modular structure enables easy transportation, quick installation, and system expansion.

Wide Operating Temperature Range

Operates efficiently between -20°C to 55°C, suitable for diverse environmental conditions.

Smart Monitoring & Control

Supports CAN communication and smart monitoring systems for efficient energy management.

Superior Safety & Reliability

Integrated safety systems including aerosol-based fire suppression and advanced battery protection features.

Models: GW51.2-BAT-I-G10 / GW56.3-BAT-I-G10
Battery Type: LiFePO4 (LFP)
Nominal Voltage: 512V / 563.2V

Capacity

Nominal Energy: 51.2 kWh/ 56.3 kWh
Usable Energy: 50 kWh-55 kWh

Performance

Cycle Life: >6000 cycles
Round Trip Efficiency: 96%

Charging / Discharging

Max Charge / Discharge Current: 100A / 110A
Max Charge / Discharge Rate: 1C

Environmental

Operating Temperature: 0°C – 40°C
Charging Temperature Range: 0°C – 55°C
Discharging Temperature Range: −20°C – 55°C
Cooling Method: Natural Cooling
Protection Rating: IP20

Physical Specifications

Dimensions: 543 × 520 × 1815 mm
Weight: 495 kg (51.2kWh)/ 540 kg (56.3kWh)

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions

The BAT Series battery is fully compatible with GoodWe ET Series hybrid inverters, creating a complete solar energy storage system.

The battery offers more than 6000 charge cycles, ensuring long-term reliability for commercial energy storage applications.

Yes. The system includes advanced safety features such as aerosol fire suppression, LiFePO4 chemistry, and integrated protection systems.

Yes. The modular rack design allows flexible expansion, making it suitable for scalable energy storage systems.

Yes. The GoodWe BAT Series High Voltage Battery is designed for advanced energy management applications such as peak shaving, load shifting, and energy optimization. When integrated with compatible hybrid inverters, the system can store excess solar energy during low demand and supply it during peak usage hours, helping businesses reduce electricity costs and improve overall energy efficiency.
