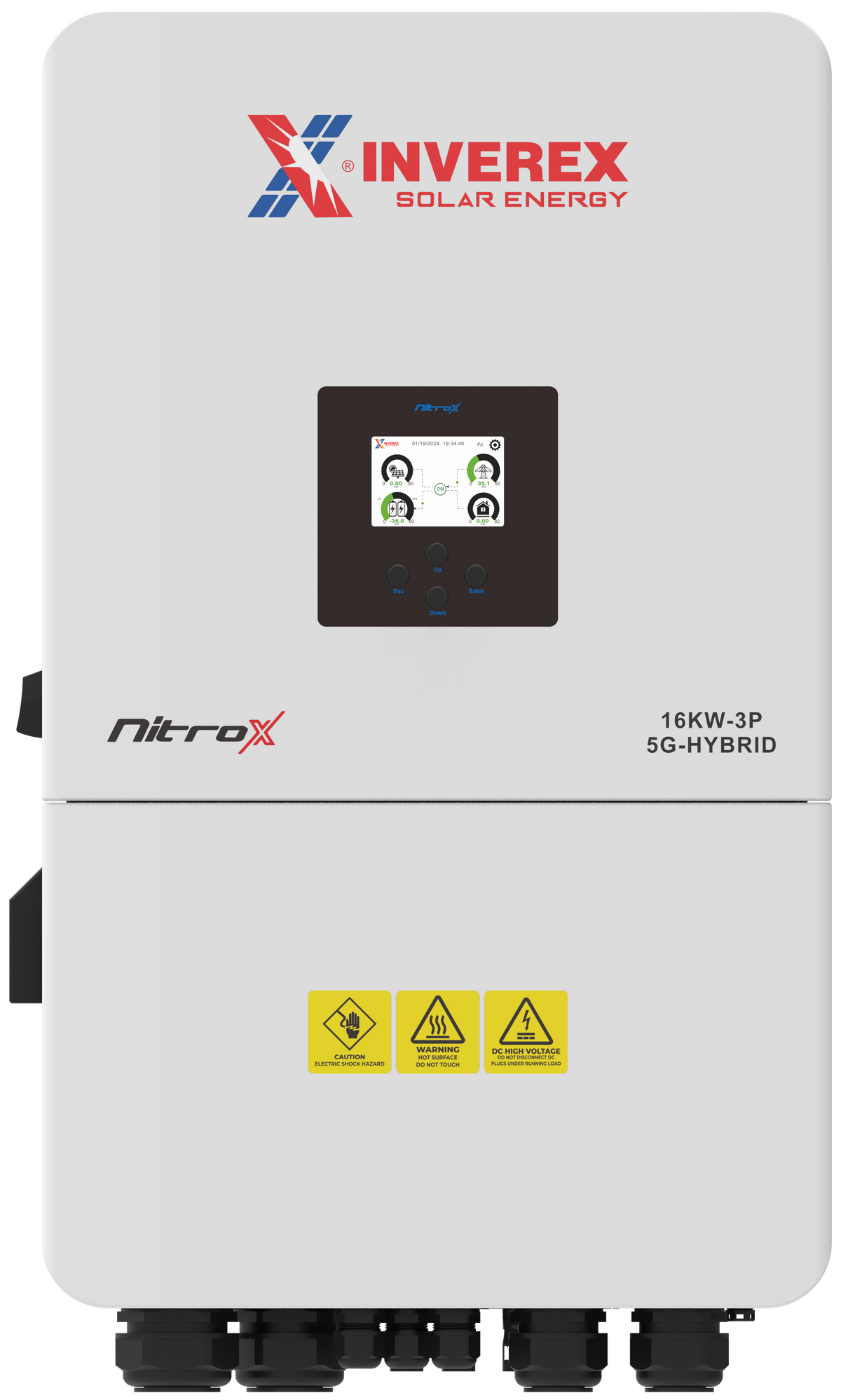

Inverex NitroX 16KW 3P 5G Hybrid Inverter | IP65

Inverex NitroX 16KW 3P 5G Hybrid Inverter | IP65

Rs.909,000.00
Skip to product information
Inverex NitroX 16KW 3P 5G Hybrid Inverter | IP65
  • Inverex NitroX 16KW 3P 5G Hybrid Inverter | IP65
Inverex NitroX 16KW 3P 5G Hybrid Inverter | IP65

Inverex NitroX 16KW 3P 5G Hybrid Inverter | IP65

Rs.909,000.00
Description

Inverex NitroX 16KW 3P 5G Hybrid Inverter delivers ultra-high power handling, advanced MPPT tracking, and seamless scalability. Its robust design ensures reliable performance even under harsh environmental conditions.
Key Features
  • 100% unbalanced output, each phase; Max. output up to 50% rated power
  • AC couple to retrofit existing solar system
  • Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Max. charging/discharging current of 300A
  • 48V low voltage battery
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generator
Technical Specifications

Max PV Input Power: 25.6 kW

MPPT Voltage Range: 160V–650VDC

Number of MPPT / Strings: Dual MPPT with independent strings

Max Input Current: 36A + 36A

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
What is the battery voltage requirement for the NitroX 16kW 5G?

It operates on a 48V low-voltage battery architecture (compatible with 48V/51V lithium-ion or 48V tubular batteries), which is rare and cost-effective for a high-capacity 16kW three-phase inverter.
What is the maximum PV (Solar) input capacity?

It supports up to 25.6kW of PV input capacity with a dual MPPT (Maximum Power Point Tracking) range of 160–650VDC and independent strings (36A + 36A).
Does it support unbalanced loads on a 3-phase output?

Yes, it features 100% unbalanced output per phase, allowing up to 50% rated power imbalance on individual phases.
