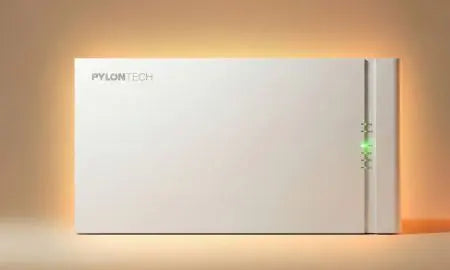

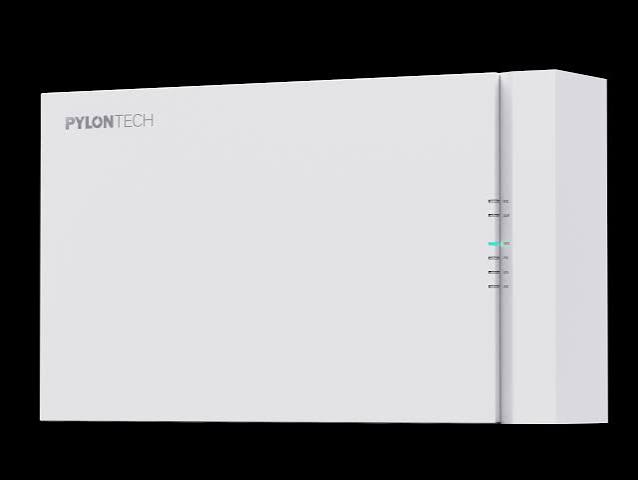

PylonTech FIDUS 5.12kWh Lithium Battery IP65 LV (10Y)

Rs.250,000.00

PylonTech FIDUS 5.12kWh Lithium Battery IP65 LV (10Y)

Name: PylonTech FIDUS 5.12kWh Lithium Battery IP65 LV (10Y)
Brand: US Solar Enterprises
Price: 250000.00 PKR
Availability: InStock

Rs.250,000.00

Explore Full Specifications

The PylonTech FIDUS 5.12kWh Lithium Battery is a compact and reliable energy storage solution using LFP (LiFePO₄) chemistry, designed for solar and hybrid inverter systems. With 100Ah capacity, 51.2V output, and smart BMS protection, it’s ideal for residential and small commercial solar backup across Pakistan.

Capacity: 5.12 kWh total capacity (approx. 4.86 kWh to 4.97 kWh usable)
Voltage: 51.2V nominal voltage (100Ah)
Chemistry: LiFePO4 (LFP)
Depth of Discharge (DoD): Up to 95%–97%
Cycle Life: 8,000+ cycles with a 10-year design/warranty life

Nominal Voltage: 51.2V
Nominal Capacity: 5.12 kWh
Usable Capacity: ~4.86 kWh to 4.97 kWh (95%–97% Depth of Discharge)
Max Charge / Discharge Current: 100A continuous (1C rate)
Peak Current: 121A – 200A for 15 seconds
Cycle Life: 6,000+ cycles at 25°C
Design Life: 10 years
Weight: 45 kg

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions

Yes. It features an IP65 environmental protection rating and C5-M anti-corrosion design, making it resilient in harsh, dusty, or humid outdoor settings.

You can scale the system by connecting up to 20 batteries in parallel in a single string, and expand up to 6 strings (totaling up to 576kWh).
