Sungrow 8KW Inverter Hybrid Sungrow MG8RL IP65

Sungrow 8KW Inverter Hybrid Sungrow MG8RL IP65

Rs.295,000.00
Skip to product information
Sungrow 8KW Inverter Hybrid Sungrow MG8RL IP65
  • Sungrow 8KW Inverter Hybrid Sungrow MG8RL IP65
  • Sungrow 8KW Inverter Hybrid Sungrow MG8RL IP65
Sungrow 8KW Inverter Hybrid Sungrow MG8RL IP65

Sungrow 8KW Inverter Hybrid Sungrow MG8RL IP65

Rs.295,000.00
Description

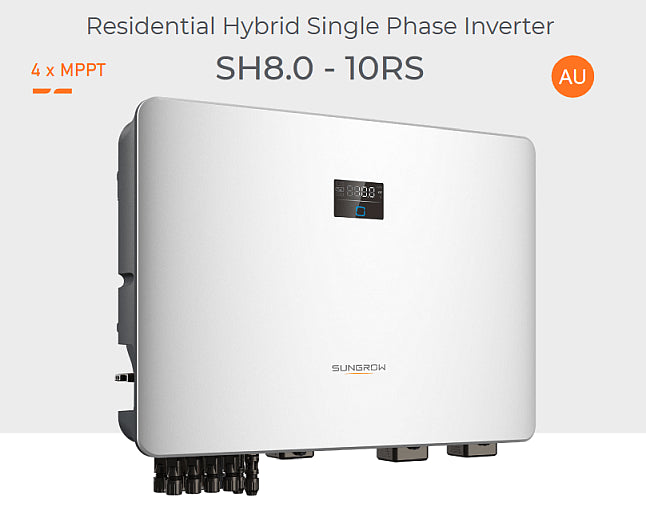

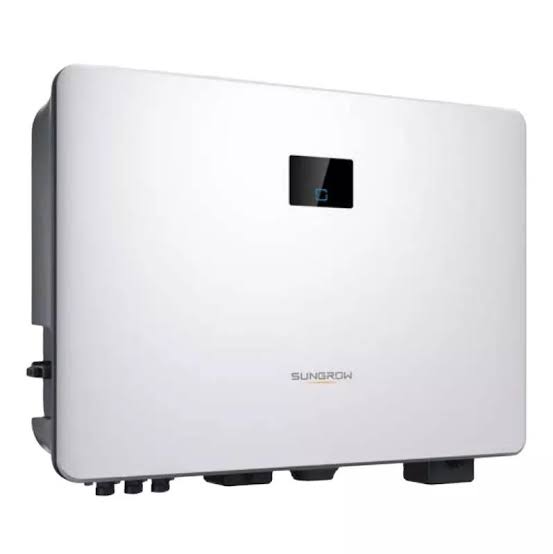

The Sungrow SH8.0RS is an 8kW residential hybrid solar inverter available in single-phase and three-phase options
Key Features
  • 8kW single-phase hybrid solar inverter
  • Supports on-grid & off-grid (hybrid functionality)
  • Compatible with Sungrow battery modules (9.6–19.2kWh)
  • Up to 200% DC/AC input for higher solar yield
  • Multiple MPPTs for optimized energy harvesting
  • Seamless backup switching during power outages
  • Smart PID recovery for improved panel performance
  • Real-time monitoring with 10-second refresh rate
  • Online IV curve scan & fault diagnosis
  • Built-in Energy Management System (EMS)
  • Fast charge & discharge for higher self-consumption
  • Includes Winet-S dongle for wireless connectivity
  • Includes DTSU666-20 smart energy meter
  • IP66 rated for dust & water resistance
  • Suitable for new installations & retrofit systems
Technical Specifications
  • Capacity: 8kW rated output power with up to 200% DC/AC ratio support.
  • MPPT Configuration: Features multiple MPPTs (typically 4 MPPTs at 16A each on the RS series) for flexible panel orientations.
  • Backup Power: Seamless switchover to emergency backup mode during outages with fast charge/discharge capabilities.
  • Smart Monitoring: 24/7 real-time tracking with a 10-second data refresh rate via the iSolarCloud App and included WiNet-S dongle.
  • Battery Compatibility: Works with high-voltage lithium-ion batteries like the Sungrow SBR and SBH series modules (6.4kWh to 25.6kWh).
  • Durability: IP66-rated robust enclosure designed for outdoor installation

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
What is the continuous and backup power rating?

It provides 8 kW of continuous AC output with high peak backup capability (e.g., up to 13.68 kW peak on the SH8.0RS single-phase model).
How many MPPTs does it feature?

The single-phase SH8.0RS comes with 4 independent MPPT (Maximum Power Point Tracking) trackers and 4 strings, allowing you to split solar panels across multiple roof orientations.
What is the weather protection rating?

It features an IP66 rating, making it dust-tight and water-resistant for outdoor or indoor wall mounting.
