Sungrow MBL160 | 16kWh low voltage lithium battery | IP 20

Rs.630,000.00

Sungrow MBL160 | 16kWh low voltage lithium battery | IP 20

Name: Sungrow MBL160 | 16kWh low voltage lithium battery | IP 20
Brand: US Solar Enterprises
Price: 630000.00 PKR
Availability: InStock

Rs.630,000.00

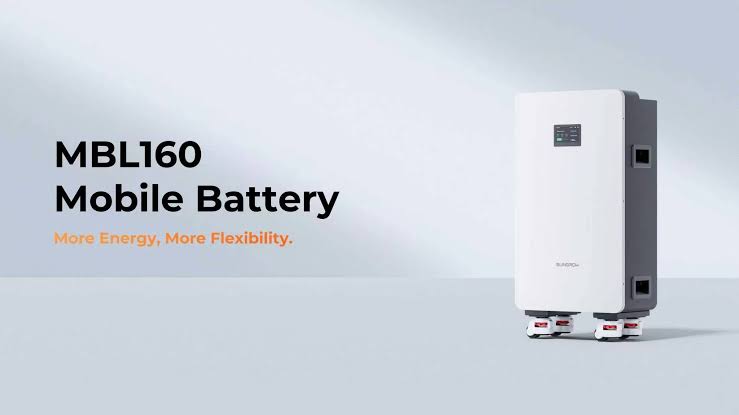

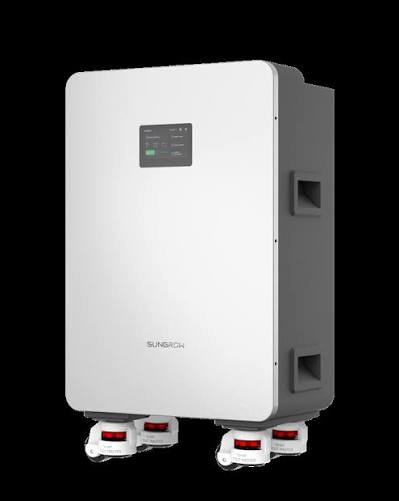

The Sungrow MBL160 is a low-voltage LiFePO4 (Lithium Iron Phosphate) mobile battery storage unit designed for residential and flexible energy backup systems.

Warranty: Standard 5-year product warranty, with extended programs available up to 10 years

Nominal Energy: 16.08 kWh
Nominal Voltage: 51.2 V (Operating range: 44.8V – 57.6V)
Cycle Life: Rated for approximately 8,000 cycles
Currents: 157A nominal charge/discharge, with peak discharge up to 300A (210A peak charge)
Dimensions & Weight: 432 x 855 x 243 mm, weighing 114.2 kg
Protection & Cooling: IP20 protection rating with natural cooling
Display & Control: Built-in LCD touchscreen for local monitoring without needing a phone or internet connection
Connectivity: CAN and RS485 communication interfaces
Scalability: Supports parallel connection of 2 to 20 modules, scaling up to 320 kWh

Nominal Energy: 16.08 kWh
Nominal Voltage: 51.2 V (Operating range: 44.8V – 57.6V)
Cycle Life: Rated for approximately 8,000 cycles
Currents: 157A nominal charge/discharge, with peak discharge up to 300A (210A peak charge)
Dimensions & Weight: 432 x 855 x 243 mm, weighing 114.2 kg
Protection & Cooling: IP20 protection rating with natural cooling
Display & Control: Built-in LCD touchscreen for local monitoring without needing a phone or internet connection
Connectivity: CAN and RS485 communication interfaces
Scalability: Supports parallel connection of 2 to 20 modules, scaling up to 320 kWh
