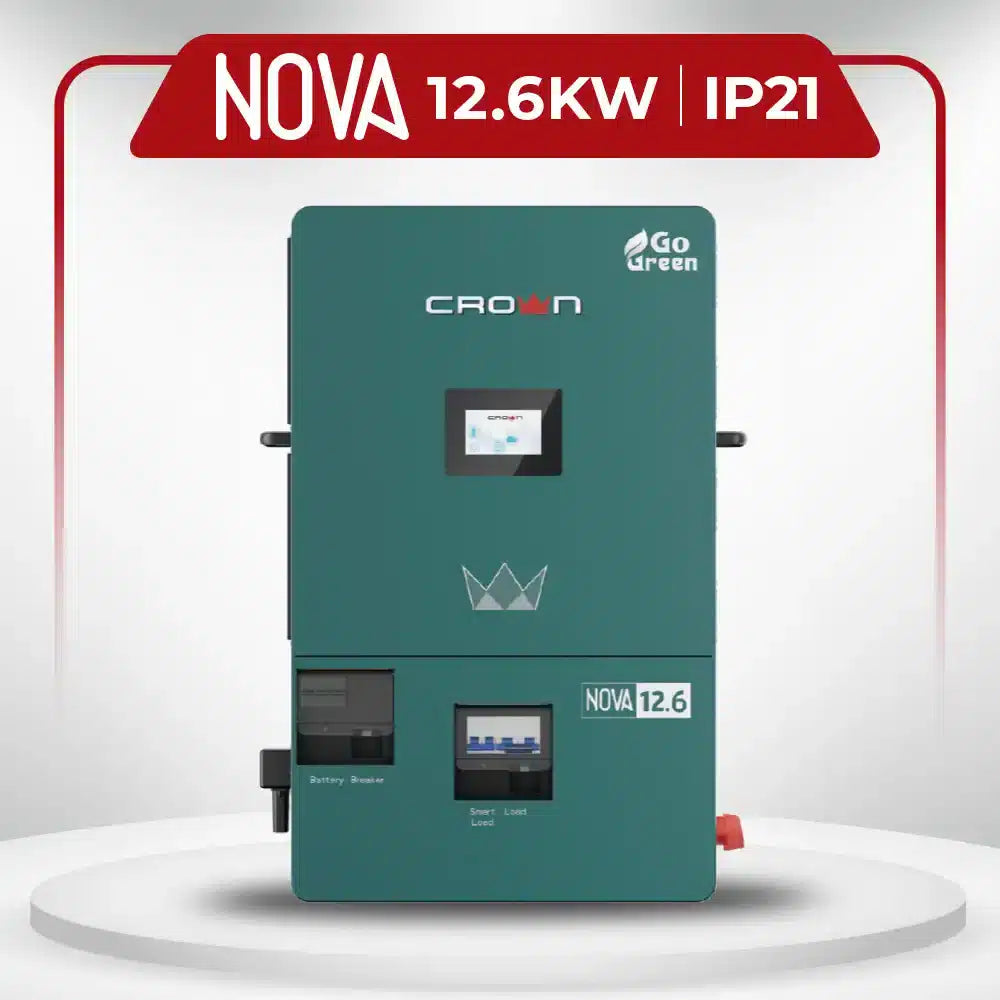

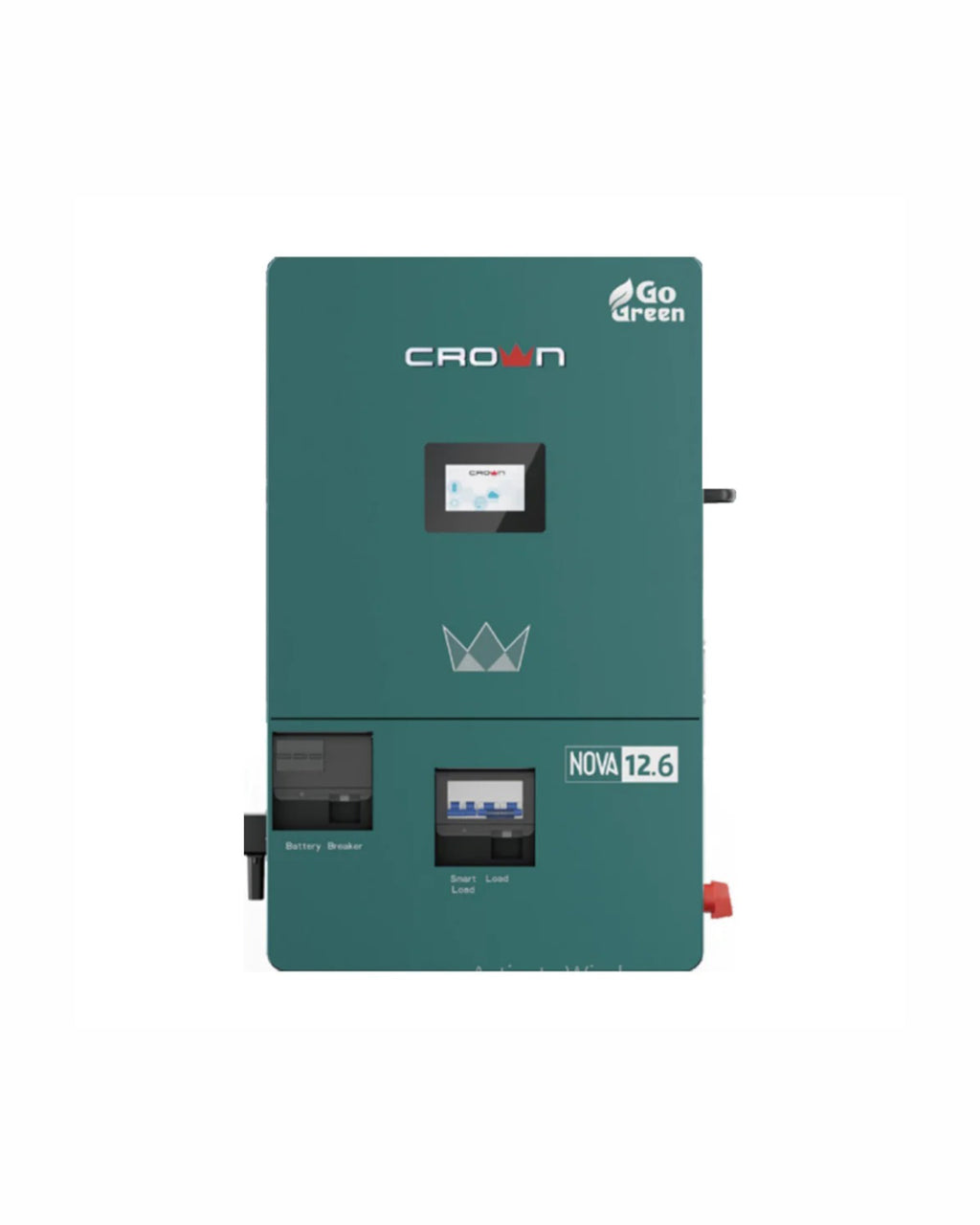

Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000)

Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000)

Rs.370,000.00
Skip to product information
Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000)
  • Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000)
  • Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000)
Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000)

Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000)

Rs.370,000.00
Description

High-Performance Hybrid Inverter for Large Residential & Commercial Solar Systems

The Crown NOVA 12.6kW Hybrid Solar Inverter (PV-24000) is a powerful and advanced solar solution designed for high-demand residential and commercial applications. Built with cutting-edge hybrid technology, it seamlessly integrates solar panels, batteries, grid, and generator systems for uninterrupted and efficient energy management.

Designed for reliability and performance, the NOVA 12.6kW inverter is a complete solution for modern energy needs with maximum efficiency and control.

Available at US Solar Enterprises, delivering dependable solar solutions for long-term energy savings.
Key Features

Dual MPPT Technology

Ensures maximum solar energy harvesting with 4 strings support.

High PV Input Capacity

Supports up to 24kW PV input for larger solar systems.

Powerful Charging System

Up to 250A charging & discharging current for efficient battery performance.

Generator Integration

Supports auto generator start/stop and dedicated GEN port.

Dual AC Output

Allows multiple load connections for flexible power distribution.

Parallel Capability

Supports up to 16 units in parallel for scalability.

Smart Hybrid Operation

Works with PV, grid, and generator simultaneously.
Technical Specifications
  • Model: NOVA-12.6KW

Input (PV)

  • Rated Power: 12,600W
  • Max PV Input Power: 24,000W
  • Rated PV Voltage: 320V
  • PV Voltage Range: 100 – 480V
  • MPPT Voltage Range: 120 – 440V
  • Start-up Voltage: 100V
  • MPPT Inputs: 2 (2 strings each)
  • Max PV Input Current: 35/35A
  • Max Short Circuit Current: 44/44A

Battery

  • Battery Type: Lithium-ion / Lead-acid
  • Rated Voltage: 48/51.2V
  • Battery Voltage Range: 46.4–60V / 38.4–60V
  • Max Charging/Discharging Current: 250A
  • Max Charging/Discharging Power: 12,600W
  • Battery Wake-up (PV/Grid): Yes

Grid

  • Rated Voltage: 230V
  • Input Voltage Range: 90 – 280V
  • Frequency: 50/60Hz
  • Max AC Input Power: 24,000W
  • Power Factor: 0.99
  • THDi: <5%

Output (UPS)

  • Rated Output Power: 12,600W
  • Output Voltage: 230V
  • Frequency: 50/60Hz
  • Waveform: Pure Sine Wave
  • Switching Time: <7ms (Single), <10ms (Parallel)
  • THDV: 3%

Generator (GEN)

  • Input Voltage: 230V
  • Max Input Voltage: 280V
  • Max Input Current: 63A
  • Frequency: 50/60Hz
  • Transfer Time: <10ms (Single), <20ms (Parallel)

Efficiency

  • Max Efficiency: 93.5%
  • Charging Efficiency: 93%
  • MPPT Efficiency: 99%

Protection

  • PV Reverse Polarity: Yes
  • Overcurrent/Overvoltage Protection: Yes
  • Short Circuit Protection: Yes
  • Grid Monitoring: Yes
  • DC Switch: Yes
  • Surge Protection: Type III

General

  • Dimensions: 150 × 530 × 830 mm
  • Weight: 40 kg

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
Can this inverter run heavy appliances?

Yes, with 12.6kW output, it can easily handle heavy residential and commercial loads.
Does it support lithium batteries?

Yes, it supports both lithium-ion and lead-acid batteries.
Can I expand the system later?

Yes, it supports parallel connection up to 16 units for scalability.
Does it work with generators?

Yes, it includes generator integration with auto start/stop functionality.
What is the switching time during power failure?

The inverter offers ultra-fast switching under 10ms, ensuring uninterrupted power.
