Dyness STACK100 Energy Storage System

Dyness STACK100 Energy Storage System

Rs.245,000.00
Description

BDU Stack LiFePO4 Battery 5kWh | (Expandable to 75kWh in 1 BDU)

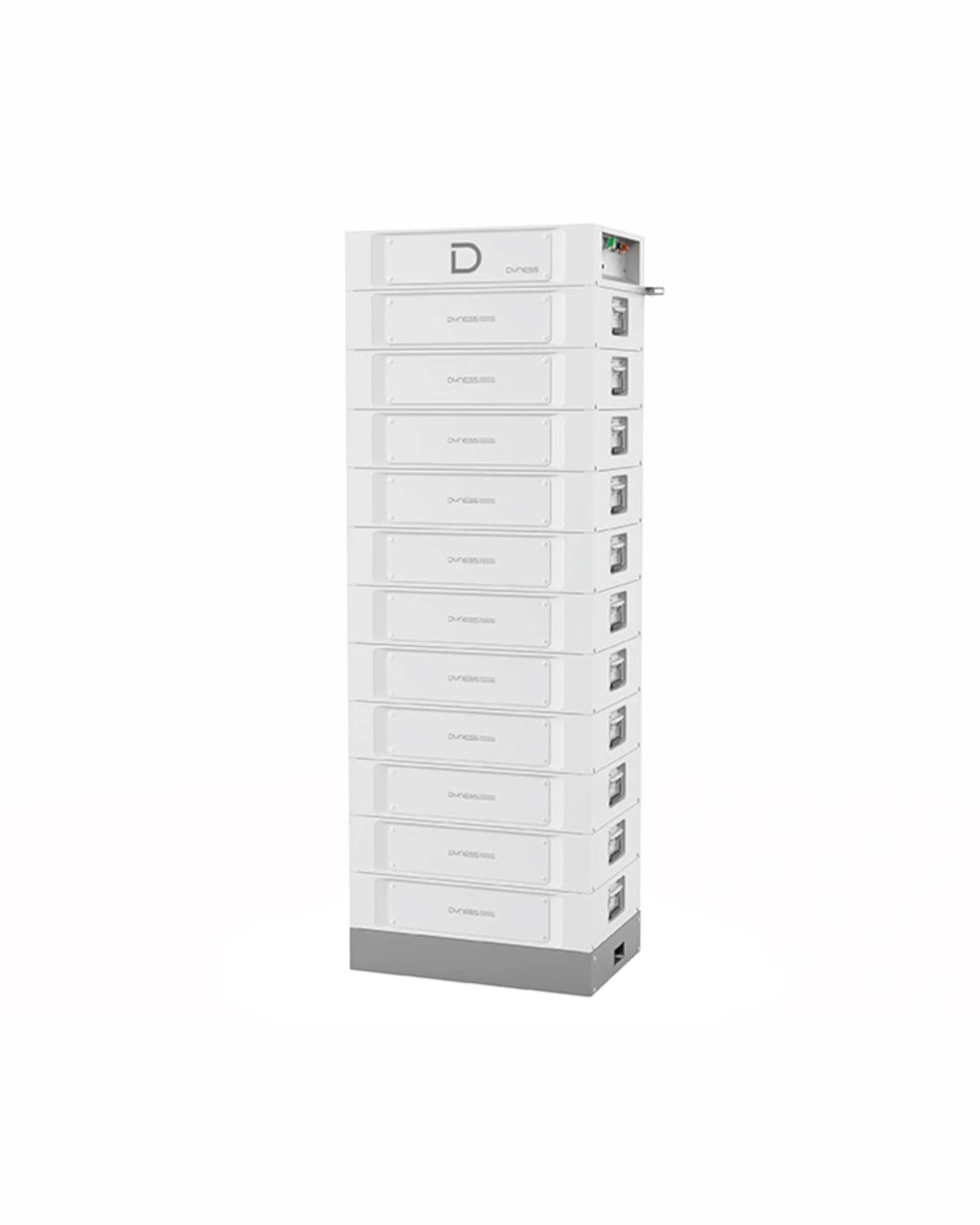

The Dyness STACK100 is a high-performance modular lithium battery energy storage system designed for residential, commercial, and industrial applications. Built with advanced LiFePO4 (Lithium Iron Phosphate) technology, it ensures superior safety, long cycle life, and stable performance under demanding energy conditions.
Key Features

Modular & Scalable Design

  • Stackable system with 3 to 15 modules
  • Capacity range: 15.36kWh – 76.8kWh
  • Expandable up to 957.6kWh in parallel

Advanced LiFePO4 Technology

  • Safer battery chemistry
  • Longer lifespan (up to 10 years)
  • High thermal stability and efficiency

Independent Fire Protection

  • Each battery pack includes an aerosol fire extinguisher
  • Enhanced safety for residential and commercial use

High Performance Output

  • Supports 1C discharge
  • Peak discharge up to 125A
  • Stable power delivery for heavy loads

Intelligent Cooling System

  • Built-in forced air cooling
  • Maintains optimal performance in high temperatures

Smart Monitoring & Connectivity

  • CAN / RS485 communication
  • Optional WiFi module with mobile app monitoring
  • Real-time data tracking and OTA updates

Easy Installation

  • Compact stack-type design
  • Space-saving and flexible deployment
Technical Specifications

General Specifications

  • Model: STACK100
  • Battery Type: LiFePO4 (Lithium Iron Phosphate)
  • Module Voltage / Capacity: 51.2V / 100Ah
  • Installation Type: Stackable (Modular Design)

Energy Capacity

  • Minimum Capacity: 15.36 kWh (3 modules)
  • Maximum Capacity (Single System): 76.8 kWh (15 modules)
  • Maximum Parallel Expansion: 957.6 kWh

Electrical Performance

  • Operating Voltage: 134V – 876V
  • Recommended Charge/Discharge Current: 50A (0.5C)
  • Max Charge/Discharge Current: 100A (1C)
  • Peak Discharge Current: 125A (1.25C)
  • Depth of Discharge (DOD): 95%

Temperature & Environment

  • Charging Temperature: 0°C to 55°C
  • Discharging Temperature: -20°C to 55°C

Communication

  • Communication Protocols: CAN / RS485
  • WiFi Module: Optional (App Monitoring + OTA Updates)

Physical Specifications

  • Signal Module Weight: 47 kg
  • Max Single Cluster Dimension: 591 × 390 × 1700 mm (11 modules)

Safety & Protection

  • Protection Level: IP20
  • Fire Protection System: Aerosol Fire Extinguisher
  • Cooling Method: Forced Air Cooling
  • Certifications: CE, EMC, RED, IEC62619, IEC63056, IEC62477, UN38.3

Compatible Inverters

Compatible with leading inverter brands including:

  • Deye
  • GoodWe
  • Solis
  • SMA
  • Growatt
  • Hoymiles
  • Sunsynk
  • ATESS
  • Dyness-supported systems

Applications

The Dyness STACK100 system is ideal for:

  • Residential solar energy storage
  • Commercial and industrial solar systems
  • Hybrid inverter systems
  • Off-grid energy solutions
  • Backup power for critical loads
  • Large-scale energy storage projects

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
What is the maximum capacity of the Dyness STACK100 system?

The system supports up to 76.8kWh per unit and can be expanded up to 957.6kWh in parallel systems.
What battery technology is used?

The system uses LiFePO4 (Lithium Iron Phosphate) batteries, known for safety, durability, and long life cycles.
Does the battery include safety protection features?

Yes, each module includes an independent aerosol fire protection system along with an intelligent BMS.
Can I monitor the system remotely?

Yes, with the optional WiFi module, you can monitor and control the system via a mobile app with real-time data and OTA updates.
Is the system compatible with hybrid inverters?

Yes, it supports CAN and RS485 communication, making it compatible with most modern hybrid inverters.
