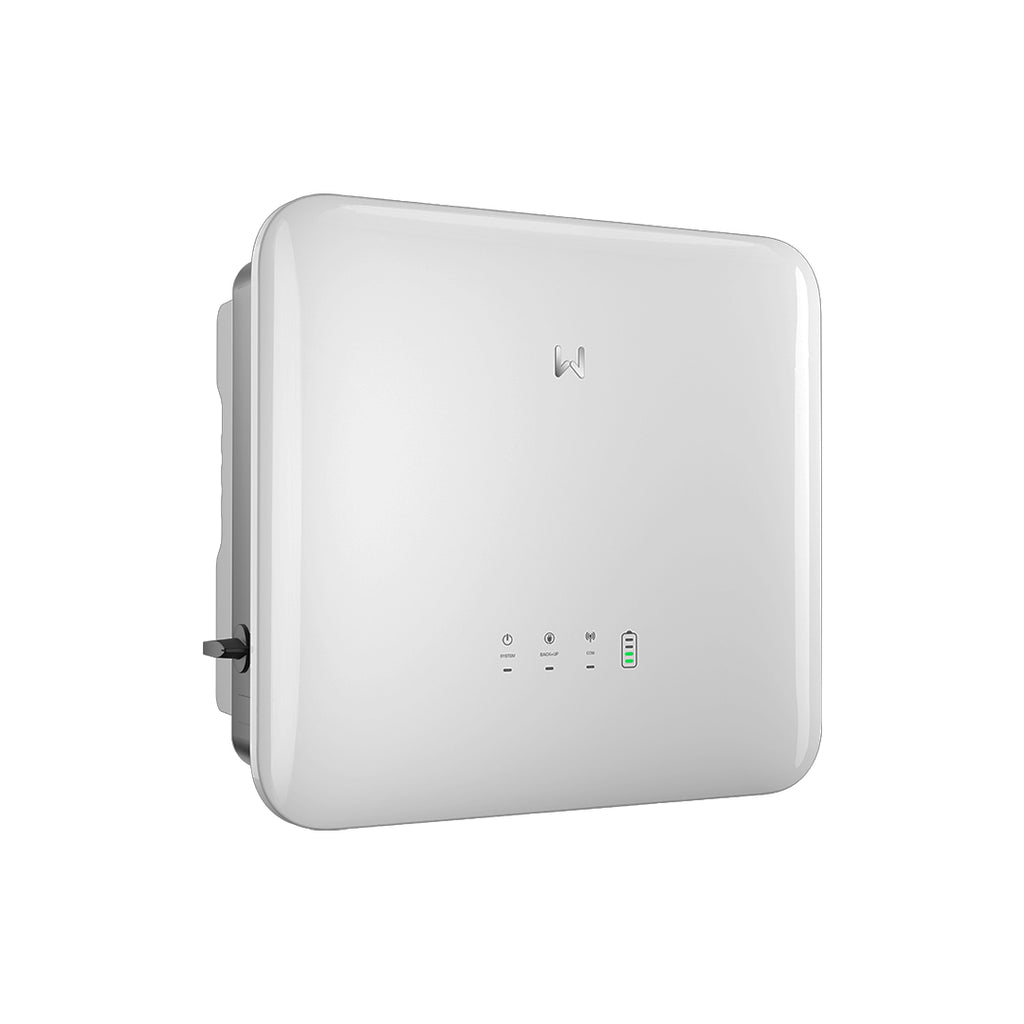

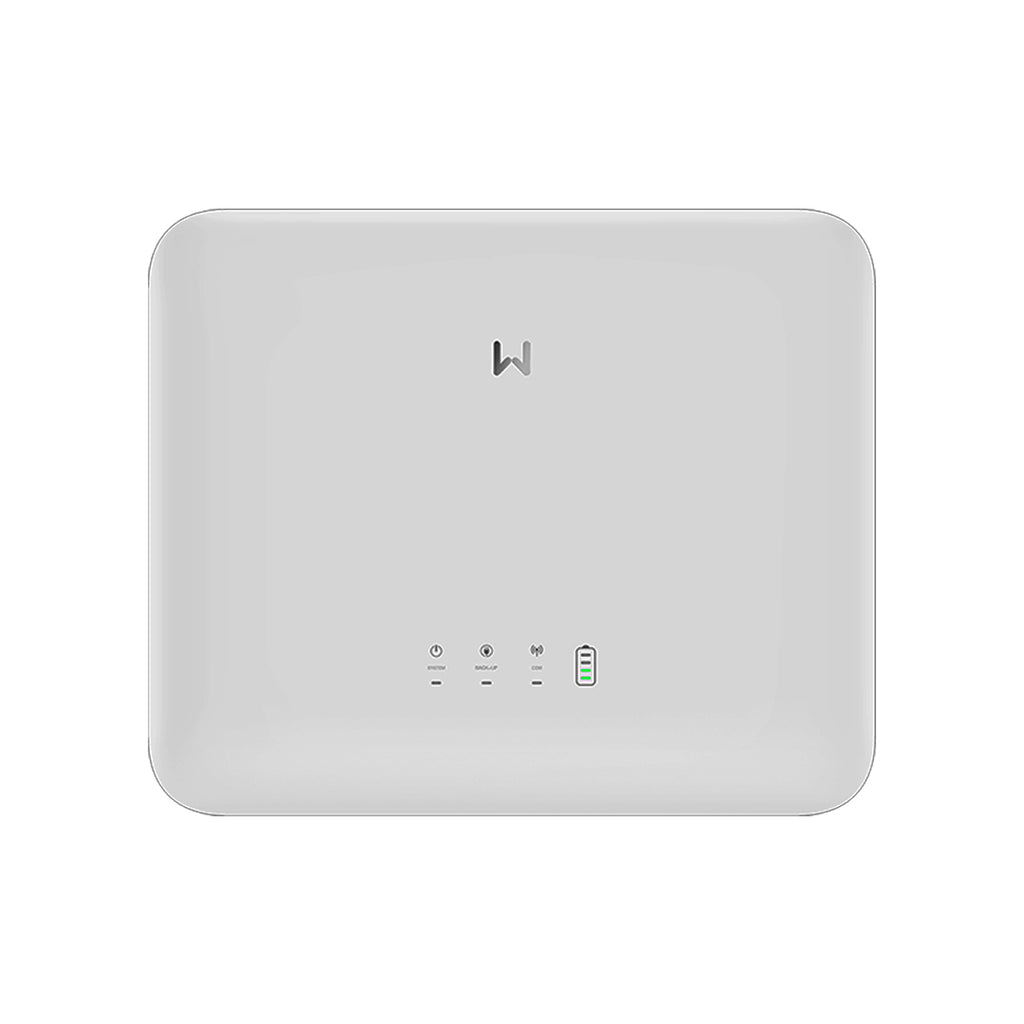

GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)

GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)

GW6000-ET-20
Rs.280,000.00
Skip to product information
GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)
  • GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)
  • GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)
  • GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)
GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)

GoodWe ET G2 Series 6–15kW Three Phase Hybrid Inverter (HV)

Rs.280,000.00
Model
Description

Advanced Three-Phase Hybrid Solar Inverter for Modern Residential Energy Systems

The GoodWe ET G2 Series Hybrid Inverter is a high-performance three-phase solar inverter designed for residential and small commercial energy storage systems. Available in power capacities from 6kW to 15kW, the ET G2 Series enables homeowners and businesses to efficiently manage solar energy production, battery storage, and grid interaction.

Available through US Solar Enterprises, the ET G2 Series inverter provides a powerful solution for advanced hybrid solar systems.
Key Features

Three-Phase Hybrid Solar Inverter

Available in 6kW, 8kW, 10kW, 12kW, and 15kW models, ideal for residential and small commercial installations.

Multiple MPPT Solar Inputs

Supports up to 3 MPPT trackers for optimized solar power generation from multiple panel arrays.

High-Voltage Battery Compatibility

Works with high-voltage lithium battery systems to provide efficient energy storage and backup power.

UPS-Level Backup Switching

Provides fast switching under 10ms, ensuring uninterrupted electricity for critical loads.

Parallel System Expansion

Supports parallel connection of up to 6 inverters, enabling scalable solar energy systems.

Smart Monitoring & Control

Equipped with WiFi, LAN, and mobile app monitoring for real-time system performance tracking.

Durable Outdoor Design

IP66 protection rating ensures reliable operation in outdoor environments.
Technical Specifications
  • Series: ET G2
  • Inverter Type: Three Phase Hybrid Inverter (HV)

Power Range

  • 6kW / 8kW / 10kW / 12kW / 15kW models available

Battery

  • Battery Type: Lithium-ion
  • Nominal Battery Voltage: 500V
  • Battery Voltage Range: 150 – 720V

Solar Input

  • Max PV Input Power: up to 24,000W
  • MPPT Voltage Range: 120 – 850V
  • Max PV Input Voltage: 1000V
  • MPPT Trackers: up to 3

AC Output

  • Nominal Output Voltage: 400V (Three-Phase)
  • Frequency: 50 / 60Hz
  • Power Factor: Adjustable

Efficiency

  • Max Efficiency: up to 98.2%
  • European Efficiency: 97.5%
  • MPPT Efficiency: 99.9%

Environmental

  • Operating Temperature: −35°C to +60°C
  • Protection Rating: IP66

Installation

  • Cooling Method: Natural Convection
  • Mounting Type: Wall Mounted

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
What battery type is compatible with the GoodWe ET G2 Series inverter?

The inverter works with high-voltage lithium battery systems, providing efficient energy storage and backup power functionality.
Can the ET G2 inverter provide backup power during outages?

Yes. The inverter supports UPS-level switching in under 10 milliseconds, ensuring continuous power for essential loads.
How many solar panels can the ET G2 Series support?

Depending on the model, the inverter supports up to 24kW PV input capacity, allowing large solar panel installations.
Can multiple ET G2 inverters be connected together?

Yes. The system supports parallel connection of up to 6 inverters, enabling larger solar energy systems.
Does the ET G2 inverter support smart monitoring?

Yes. The inverter supports WiFi, LAN, and mobile app monitoring, allowing users to monitor system performance in real time.
