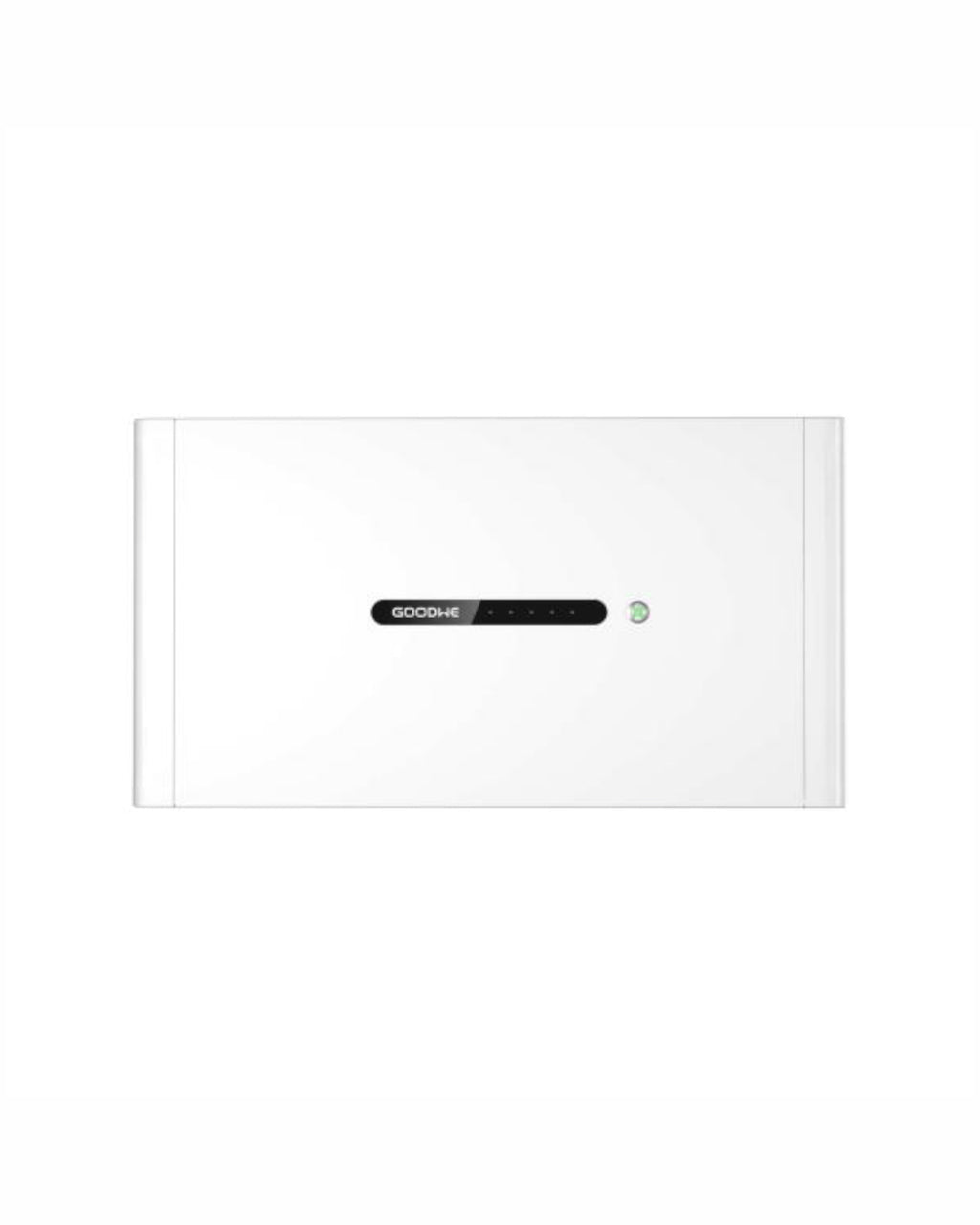

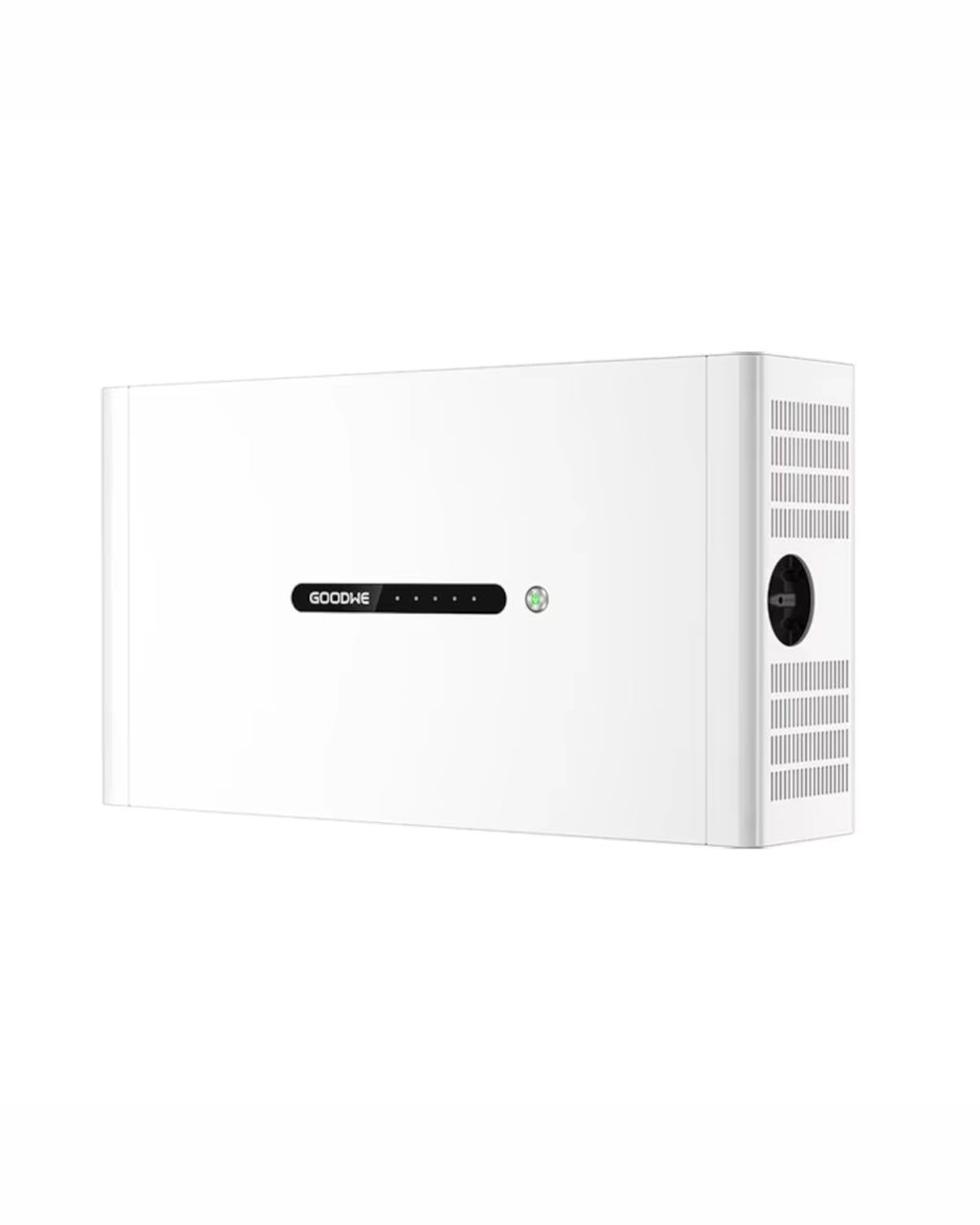

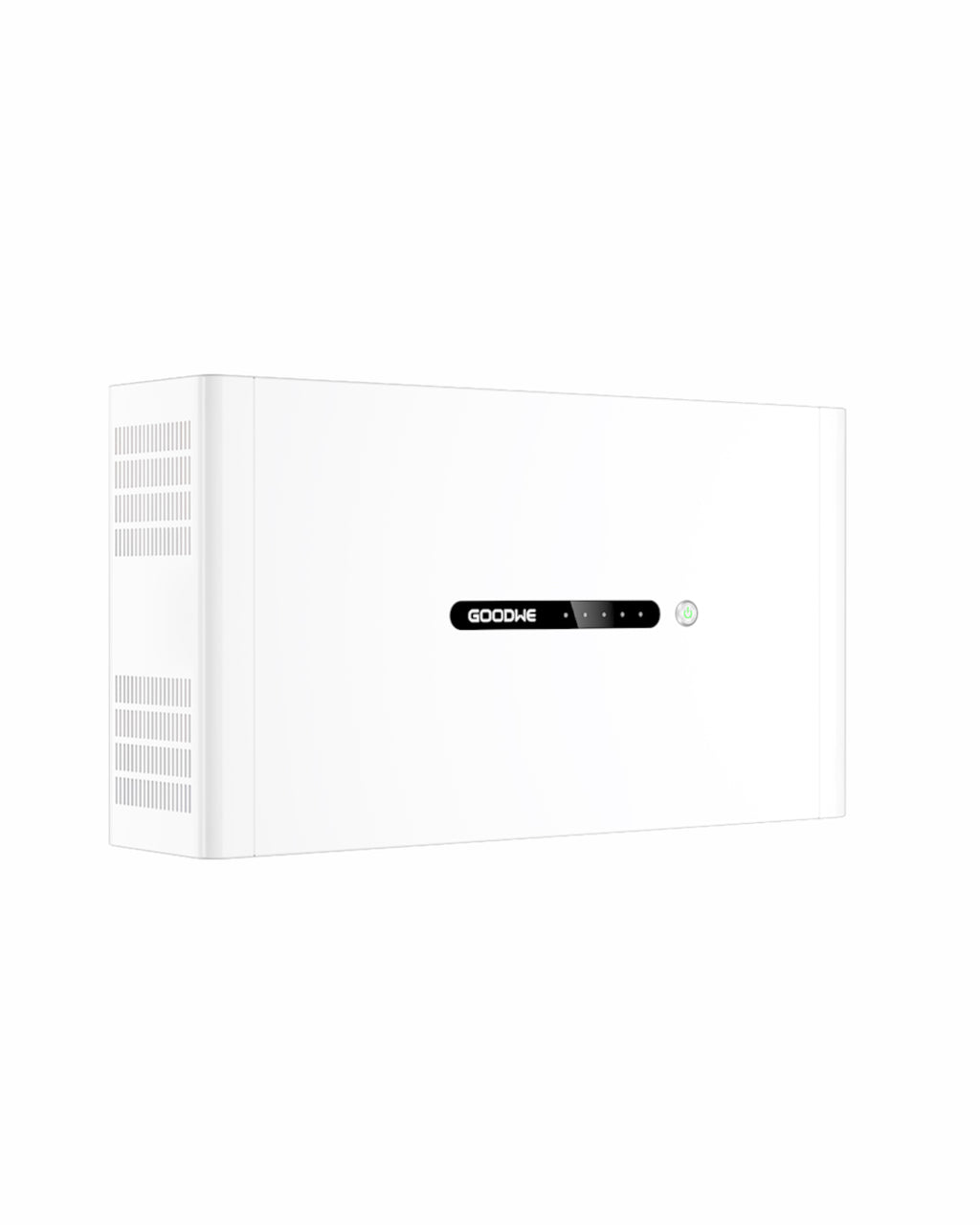

GoodWe Lynx D Series 5kWh High Voltage Lithium Battery

Rs.280,000.00

GoodWe Lynx D Series 5kWh High Voltage Lithium Battery

Name: GoodWe Lynx D Series 5kWh High Voltage Lithium Battery
Brand: GoodWe
Price: 280000.00 PKR
Availability: InStock

Rs.280,000.00

Explore Full Specifications

Advanced High-Voltage Energy Storage Solution for Residential Solar Systems

The GoodWe Lynx D Series 5kWh High Voltage Battery is a premium lithium energy storage solution designed for modern residential solar applications. Built using advanced LiFePO4 (LFP) battery technology, the Lynx D Series delivers high performance, enhanced safety, and long-lasting reliability for home energy storage systems.

With its sleek design, plug-and-play installation, and IP66 protection, the Lynx D Series is ideal for both indoor and outdoor residential installations.

Available through US Solar Enterprises, this battery provides a reliable and efficient solution for homeowners seeking energy independence and smart solar storage.

High-Voltage Energy Storage

Optimized high-voltage architecture for improved efficiency and performance.

Advanced LiFePO4 Battery Technology

Safe and durable LFP cells provide long lifespan and thermal stability.

Modular & Expandable System

Supports parallel connection and mixing of battery units, allowing flexible system expansion.

Integrated Smart BMS

Built-in Battery Management System ensures safety, monitoring, and performance optimization.

Plug & Play Installation

User-friendly plug-and-play wiring system simplifies installation and setup.

High Safety Standards

Features IP66 protection rating and advanced safety certifications for reliable operation.

Modern Compact Design

Sleek design that blends seamlessly into residential environments.

Series: Lynx D Series
Model: LX D5.0-10
Battery Type: LiFePO4 (LFP)

Capacity

Usable Energy: 5kWh

Electrical

Nominal Voltage: Charge 435V / Discharge 380V
Output Voltage Range: 320 – 480V

Power

Nominal Power: 3kW
Peak Power: 5kW (10 seconds)

Environmental

Charging Temperature: 0°C – 53°C
Discharging Temperature: −20°C – 53°C
Max Operating Altitude: 4000m

Physical Specifications

Weight: 52kg
Dimensions: 700 × 380 × 170 mm

Protection & Communication

Ingress Protection: IP66
Communication: CAN

Installation

Mounting Options: Floor Stacked / Wall Mounted

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions

The Lynx D Series uses LiFePO4 (LFP) battery technology, known for safety, stability, and long lifespan.

Yes. The battery is specifically designed for seamless integration with GoodWe hybrid inverters.

Yes. The Lynx D Series supports modular expansion and parallel connection, allowing future upgrades.

Yes. When paired with a compatible hybrid inverter, it can store solar energy and supply backup power during outages.

Yes. With an IP66 protection rating, the battery is designed for safe indoor and outdoor use.
