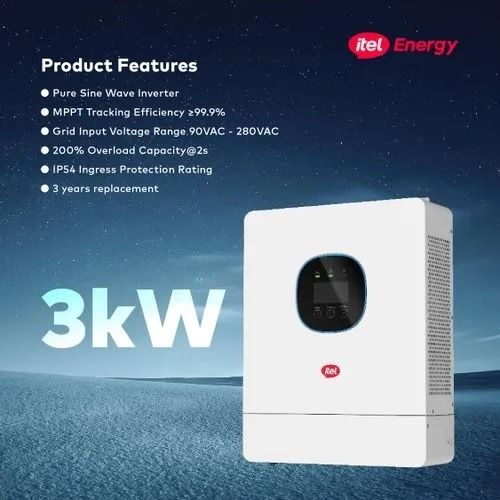

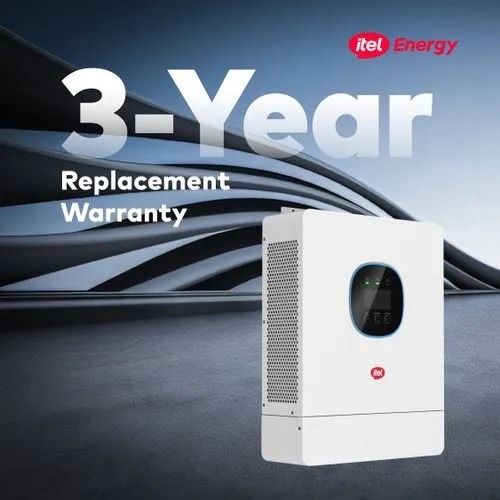

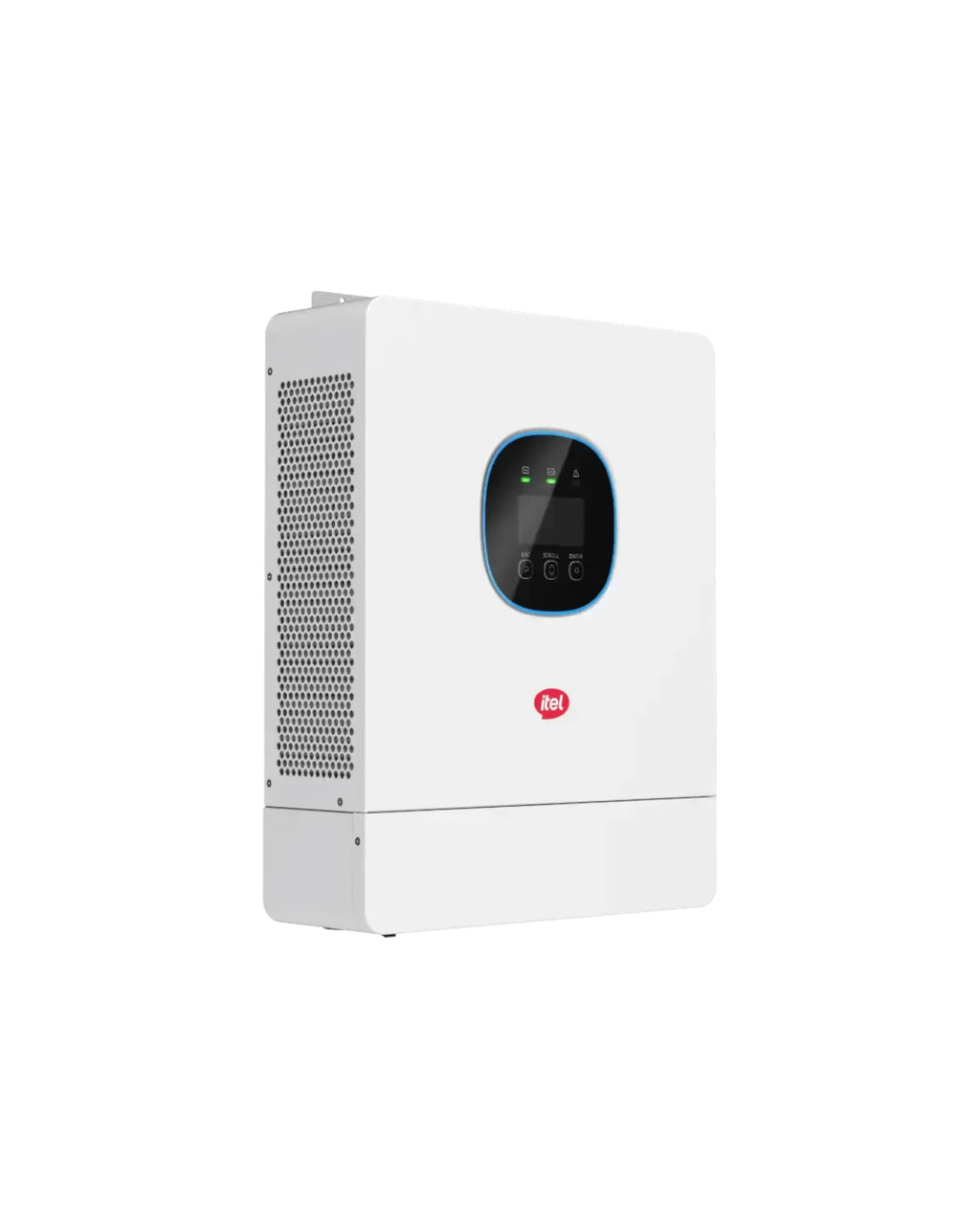

iTel IPV-3K24U Pro Hybrid Inverter (3kW)

iTel IPV-3K24U Pro Hybrid Inverter (3kW)

Rs.75,000.00
Skip to product information
iTel IPV-3K24U Pro Hybrid Inverter (3kW)
  • iTel IPV-3K24U Pro Hybrid Inverter (3kW)
  • iTel IPV-3K24U Pro Hybrid Inverter (3kW)
  • iTel IPV-3K24U Pro Hybrid Inverter (3kW)
iTel IPV-3K24U Pro Hybrid Inverter (3kW)

iTel IPV-3K24U Pro Hybrid Inverter (3kW)

Rs.75,000.00
Description

Reliable Hybrid Solar Inverter for Homes & Small Businesses

The iTel IPV-3K24U Pro Hybrid Inverter is a compact and efficient 3kW solar inverter designed to deliver stable power for residential and small-scale commercial applications. Built with IP54 protection, it is resistant to dust and water, making it suitable for diverse environments.

Engineered for durability and performance, the inverter supports high overload capacity (up to 200%), ensuring smooth operation even under heavy load conditions. Its intelligent design, combined with efficient cooling and compact size, makes installation easy and reliable.

Available at US Solar Enterprises, offering dependable solar power solutions.
Key Features

High Efficiency

MPPT tracking efficiency up to 99.9% for maximum solar yield.

Powerful Performance

Supports 150%–200% overload capacity for heavy load handling.

Hybrid Functionality

Works with solar panels, batteries, and grid power seamlessly.

IP54 Protection

Dustproof and water-resistant design for long-term durability.

Stable Output

Pure sine wave output ensures safe operation of appliances.

Smart Cooling

Intelligent fan cooling system for efficient heat management.

Compact Design

Lightweight and easy to install for residential use.
Technical Specifications
  • Model: IPV-3K24U Pro

Efficiency

  • MPPT Tracking Efficiency: ≥99.9%
  • Battery Mode Efficiency: ≥93%

PV Input

  • Max PV Input Power: 4500W
  • Max DC Voltage: 500V
  • Start-up Voltage: 75V
  • MPPT Voltage Range: 70V – 425V
  • Max Input Current: 18A
  • MPPT Trackers: 1

AC Input

  • Max Grid Input Voltage: 380V
  • Nominal Voltage: 220V / 230V / 240V
  • Input Voltage Range: 90V – 280VAC
  • Max AC Input Current: 20A
  • Frequency: 50Hz / 60Hz
  • THDi: <3%

AC Output

  • Rated Output Power: 3000W
  • Max Apparent Power: 3600VA
  • Output Voltage: 220V
  • Max Output Current: 16.3A
  • Frequency: 50Hz
  • Switch Time: 20ms
  • Surge Power: 6000VA

Overload Capacity:

  • 105%–150% (10s)
  • 150%–200% (2s)

Battery

  • Battery Type: Lead-acid / Lithium-ion / User Defined
  • Rated Voltage: 24V
  • Voltage Range: 20V – 30V
  • Max MPPT Charging Current: 125A
  • Max Charging Current (Grid/Generator): 125A
  • Max Discharging Current: 135A

General

  • Dimensions: 290 × 108 × 350 mm
  • Weight: 9.2 kg
  • Operating Temperature: -10°C to +55°C
  • Max Altitude: 4000m (derating above 2000m)
  • Communication: RS485 / RS232
  • Cooling Method: Intelligent Fan Cooling
  • Noise Level: <45dB

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions
Can this inverter work without batteries?

Yes, it can operate with solar and grid power, but batteries are recommended for backup.
What type of batteries are supported?

It supports lead-acid, lithium-ion, and user-defined battery types.
Is this inverter suitable for outdoor installation?

Yes, with IP54 protection, it is resistant to dust and water.
What is the maximum solar input capacity?

It supports up to 4500W PV input power.
Does it support heavy appliances?

Yes, with up to 200% overload capacity, it can handle heavy loads for short durations.
