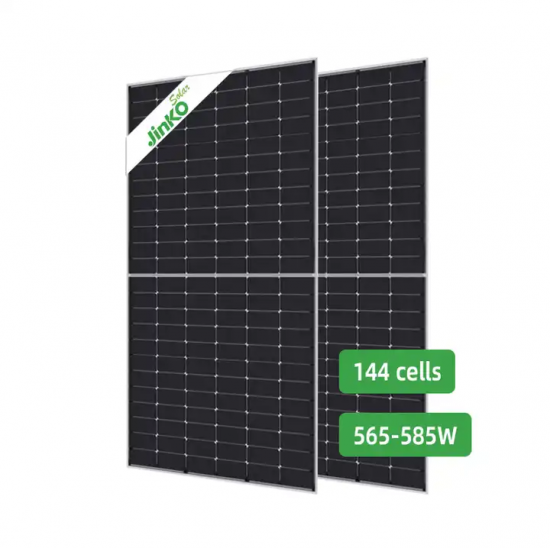

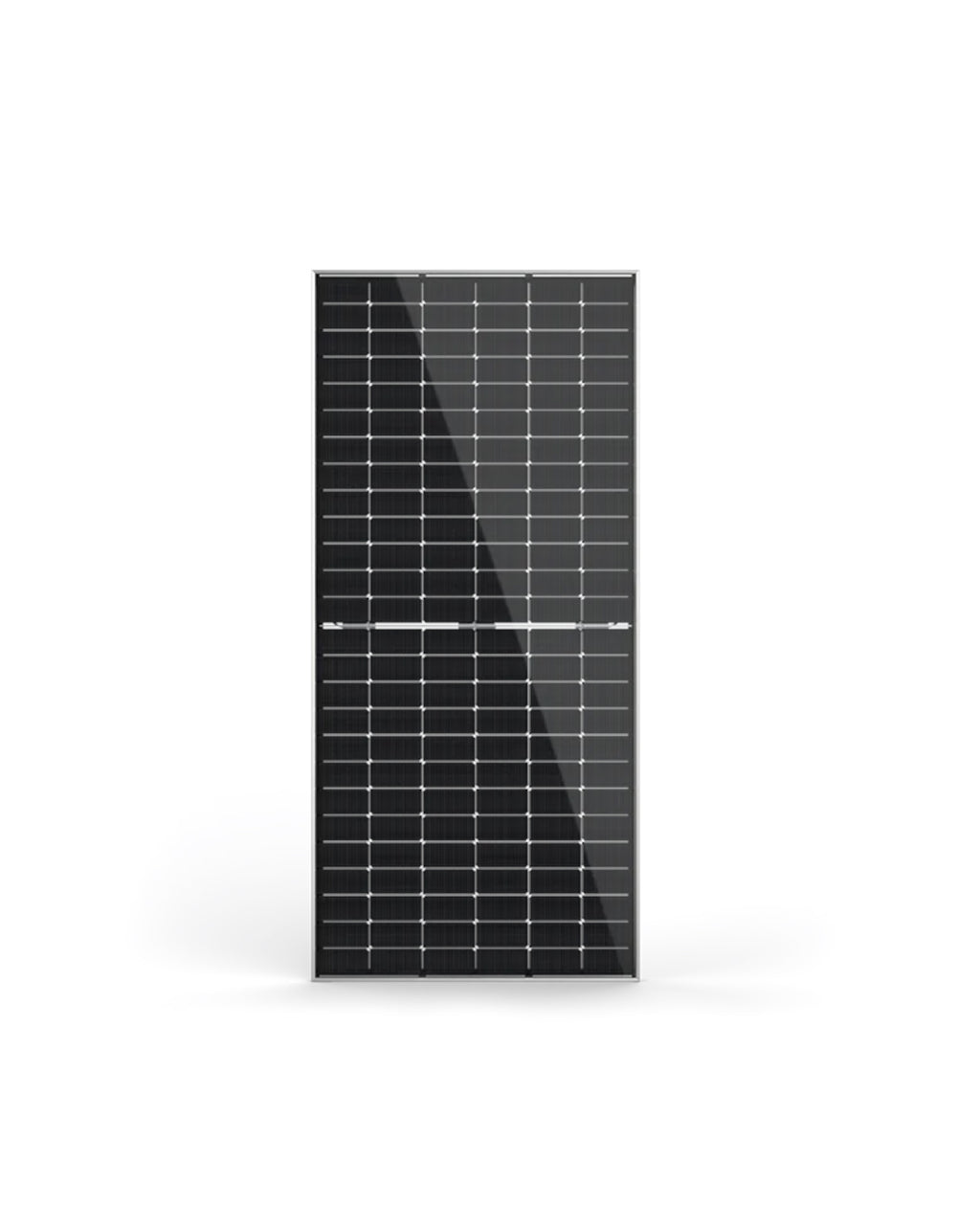

• Module Series: JKM565N-72HL4-V – JKM585N-72HL4-V
• Power Range: 565W – 585W
• Module Efficiency: Up to 22.65%
• Solar Cell Type: N-Type Monocrystalline
• Power Tolerance: 0 ~ +3%

Electrical Characteristics (Example – 585W Module)

• Maximum Power (Pmax): 585W
• Maximum Power Voltage (Vmp): 42.52V
• Maximum Power Current (Imp): 13.76A
• Open Circuit Voltage (Voc): 51.16V
• Short Circuit Current (Isc): 14.55A
• Module Efficiency: 22.65%

Mechanical Specifications

• Cell Type: N-Type Monocrystalline
• Number of Cells: 144 (6 × 24)
• Module Dimensions: 2278 × 1134 × 35 mm
• Weight: 28 kg
• Front Glass: 3.2 mm Anti-Reflection Coated Tempered Glass
• Frame: Anodized Aluminum Alloy
• Junction Box: IP68 Rated
• Output Cable: TUV 1 × 4.0 mm²
• Cable Length: (+): 400 mm, (−): 200 mm or customizable

Operating Conditions

• Operating Temperature: −40°C to +85°C
• Maximum System Voltage: 1000V / 1500V DC
• Maximum Series Fuse Rating: 25A
• Nominal Operating Cell Temperature (NOCT): 45 ± 2°C

Temperature Coefficients

• Temperature Coefficient of Pmax: −0.29 % / °C
• Temperature Coefficient of Voc: −0.25 % / °C
• Temperature Coefficient of Isc: +0.045 % / °C

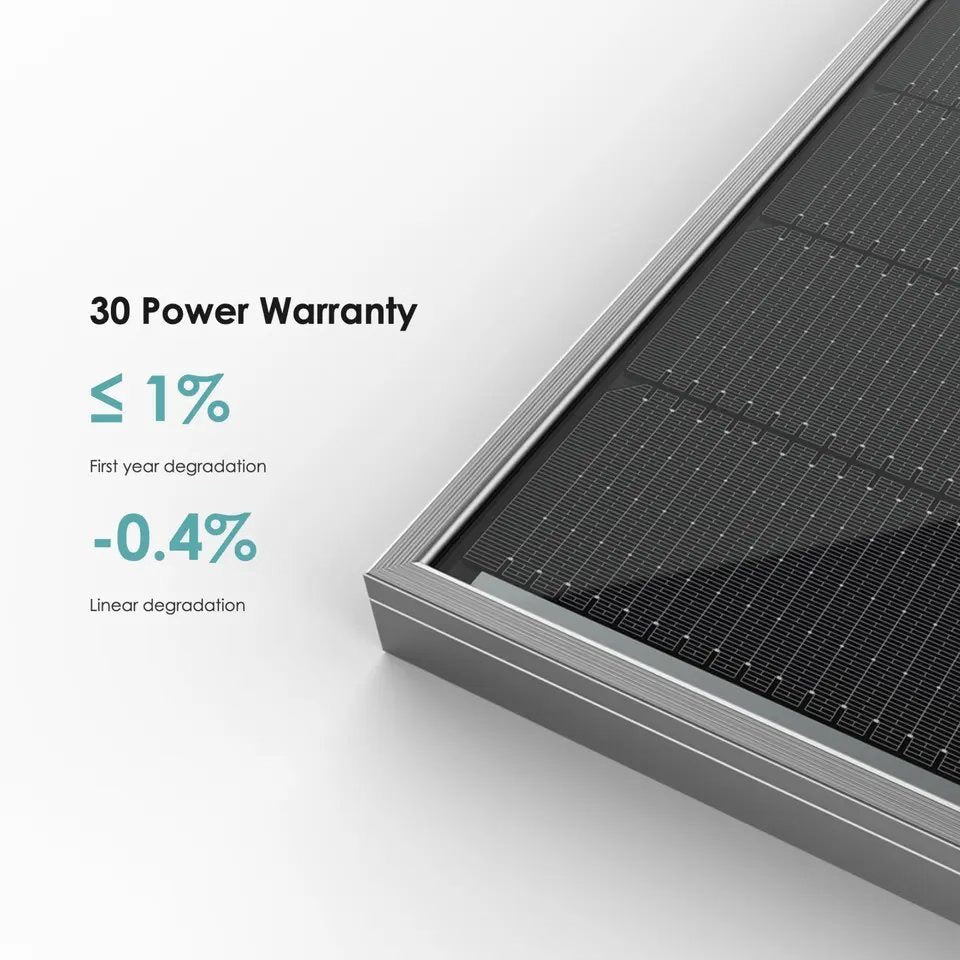

Warranty

• Product Warranty: 12 Years
• Linear Power Warranty: 30 Years
• First-Year Degradation: 1%
• Annual Power Degradation: 0.40%
• Guaranteed Power After 30 Years: 87.4%
