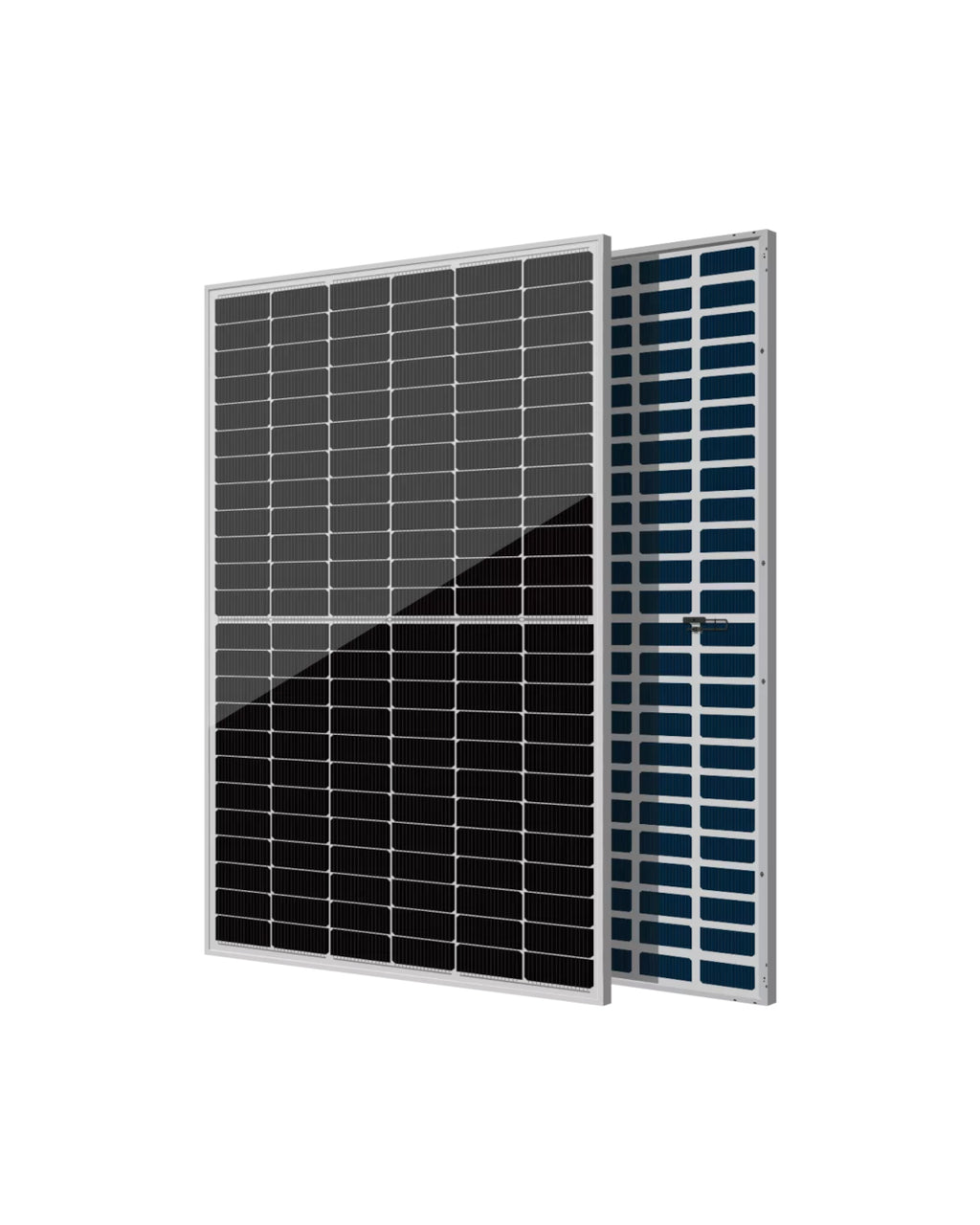

ZNShine ZXNR-BD120 N-Type Bifacial Solar Panel (570–600W)

Rs.15,000.00

ZNShine ZXNR-BD120 N-Type Bifacial Solar Panel (570–600W)

Name: ZNShine ZXNR-BD120 N-Type Bifacial Solar Panel (570–600W)
Brand: ZNShine
Price: 15000.00 PKR
Availability: InStock

Rs.15,000.00

Explore Full Specifications

High-Efficiency N-Type Bifacial Double Glass Solar Module

The ZNShine ZXNR-BD120 Series is a high-performance N-Type bifacial double-glass solar panel engineered for commercial and utility-scale solar projects. Designed with SMBB half-cell technology and advanced N-type monocrystalline cells, this module delivers higher efficiency, lower degradation, and superior long-term reliability.

The panel also features excellent weak-light performance, anti-PID protection, and durable double-glass construction, ensuring long service life and improved durability in demanding climates.

Available through US Solar Enterprises, providing advanced solar modules for residential, commercial, and industrial solar systems.

High Cell Efficiency

SMBB (Super Multi-Busbar) technology reduces resistance and improves current collection for higher efficiency.

N-Type Bifacial Technology

Generates electricity from both front and rear surfaces for up to 25% additional energy gain.

Excellent Low-Light Performance

Maintains strong power output during cloudy conditions, haze, and early mornings.

Anti-PID Protection

Enhanced resistance against Potential Induced Degradation, ensuring long-term reliability.

Durable Double-Glass Design

Double-glass construction improves module strength and protects against environmental damage.

Tier-1 Bankable Brand

Manufactured by ZNShine Solar, a globally recognized Tier-1 photovoltaic manufacturer.

Harsh Environment Adaptability

Designed to perform reliably in environments exposed to salt, ammonia, and extreme weather conditions.

Model Series: ZXNR-BD120
Power Range: 570W – 600W
Maximum Efficiency: 23.22%

Electrical Characteristics (STC)

Example – 600W Module:
Maximum Power (Pmax): 600 W
Maximum Power Voltage (Vmp): 38.70 V
Maximum Power Current (Imp): 15.51 A
Open Circuit Voltage (Voc): 45.90 V
Short Circuit Current (Isc): 16.44 A
Module Efficiency: 23.22%

Electrical Characteristics (NMOT)

Maximum Power (Pmax): 455.80 W
Maximum Power Voltage (Vmp): 36.20 V
Maximum Power Current (Imp): 12.60 A
Open Circuit Voltage (Voc): 43.50 V
Short Circuit Current (Isc): 13.26 A

Mechanical Specifications

Solar Cells: N-Type Monocrystalline Rectangular Cells
Cell Orientation: 120 Cells (6 × 20)
Module Dimensions: 2279 × 1134 × 30 mm
Weight: 31.0 kg
Glass: 2.0 mm + 2.0 mm Double Glass (AR Coated)
Frame: Aluminum Alloy
Junction Box: IP68 with 3 bypass diodes
Connectors: MC4 Compatible / MC4 EVO2
Cable: 4 mm², 300 mm

Operating Conditions

Maximum System Voltage: 1500V DC
Operating Temperature: -40°C to +85°C
Maximum Series Fuse Rating: 30A
Front Load Capacity: 5400 Pa
Rear Load Capacity: 2400 Pa
Bifacial Factor: 80% ±10%

Temperature Coefficients

Pmax: -0.28 % / °C
Voc: -0.23 % / °C
Isc: +0.045 % / °C

Warranty

Product Warranty: 12 Years
Performance Warranty: 30 Years Linear Output Warranty
Annual Degradation: 0.40%

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions

The module provides power output between 570W and 600W.

Bifacial panels generate power from both the front and rear surfaces, increasing total energy output.

The module delivers up to 23.22% maximum efficiency.

The panel is designed to withstand 5400 Pa snow load and 2400 Pa wind load.

It includes a 12-year product warranty and a 30-year linear power output warranty.
