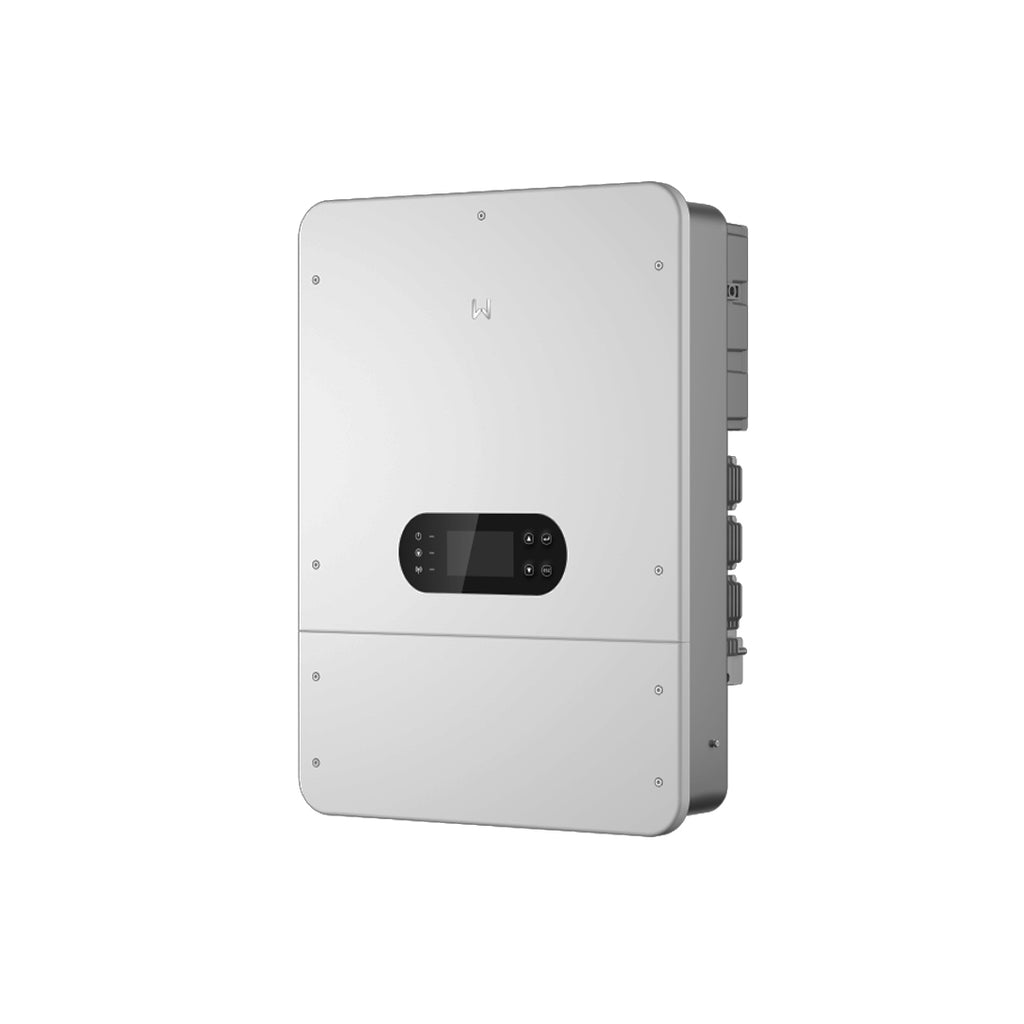

GoodWe ET LV Series 5–20kW Three Phase Hybrid Inverter (Low Voltage)

GW5K-ET-L-G10

Rs.360,000.00

GoodWe ET LV Series 5–20kW Three Phase Hybrid Inverter (Low Voltage)

Rs.360,000.00

Model GW5K-ET-L-G10 GW6K-ET-L-G10 GW8K-ET-L-G10 GW10K-ET-L-G10 GW12K-ET-L-G10 GW15K-ET-L-G10 GW20K-ET-L-G10

Explore Full Specifications

Powerful Low-Voltage Hybrid Solar Inverter for Residential Energy Storage

The GoodWe ET LV Series Hybrid Inverter (5–20kW) is a high-performance three-phase solar inverter designed specifically for residential energy storage systems using low-voltage batteries (48V). Built for flexibility and reliability, the ET LV Series integrates seamlessly with modern solar installations and supports a wide range of battery capacities and brands.

Designed for advanced hybrid energy systems, this inverter enables homeowners to efficiently manage solar power production, battery storage, and grid interaction. The ET LV Series supports popular GoodWe battery solutions including Lynx Home U, Lynx A, Lynx G3, and BAT 14kWh low-voltage batteries, making it a versatile option for various residential solar setups.

With up to 200% PV oversizing capability and dual independent battery inputs, the inverter maximizes solar energy generation and storage efficiency. It also offers smart monitoring and UPS-level switching under 4 milliseconds, ensuring uninterrupted power supply during grid outages.

The ET LV Series inverter is an ideal solution for homeowners seeking reliable solar energy storage, improved energy independence, and optimized system performance.

Available through US Solar Enterprises, this advanced inverter provides a dependable foundation for modern residential solar systems.

High Performance Solar Conversion

Supports up to 200% PV oversizing to maximize solar energy production.

Low-Voltage Battery Compatibility

Designed for 48V lithium and lead-acid batteries, ensuring flexible energy storage options.

Dual Battery Inputs

Features dual independent battery inputs with up to 416A, allowing enhanced battery performance.

Smart Monitoring & Energy Control

Provides real-time monitoring via mobile app, WiFi, LAN, and cloud portal.

UPS-Level Backup Switching

Ensures seamless switching under 4 milliseconds, maintaining power during grid outages.

Advanced Safety Protection

Includes AI-driven AFCI, Type II surge protection, and IP66 weather protection for safe outdoor operation.

Flexible Energy Applications

Supports up to 150% unbalanced output, ideal for complex residential loads.

Series: ET LV
Inverter Type: Three-Phase Hybrid Inverter (Low Voltage)

Power Range

5kW / 6kW / 8kW / 10kW / 12kW / 15kW / 20kW models

Battery

Battery Type: Li-ion / Lead-acid (48V)
Nominal Battery Voltage: 48V
Max Battery Charging Current: up to 208A

Solar Input

Max PV Input Power: up to 40kW
Max PV Input Voltage: 1000V
MPPT Voltage Range: 180 – 850V
MPPT Trackers: up to 4

AC Output

Nominal Voltage: 400V (Three-Phase)
Frequency: 50 / 60Hz
Max Output Power: up to 20kW

Efficiency

Max Efficiency: 97.8%
European Efficiency: 97.4%
MPPT Efficiency: 99.9%

Environmental

Operating Temperature: −35°C to +60°C
Protection Rating: IP66

Installation

Cooling Method: Smart Fan Cooling
Mounting Type: Wall Mounted

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions

The ET LV Series supports 48V lithium-ion and lead-acid batteries, including GoodWe Lynx battery systems.

The inverter supports up to 200% PV oversizing, allowing larger solar panel installations for higher energy production.

Yes. The inverter provides UPS-level switching under 4 milliseconds, ensuring uninterrupted electricity supply.

Yes. The system includes WiFi, LAN, and mobile app monitoring, allowing users to track performance and energy usage in real time.

Yes. With its IP66 protection rating, the inverter is designed for safe and reliable outdoor operation.
