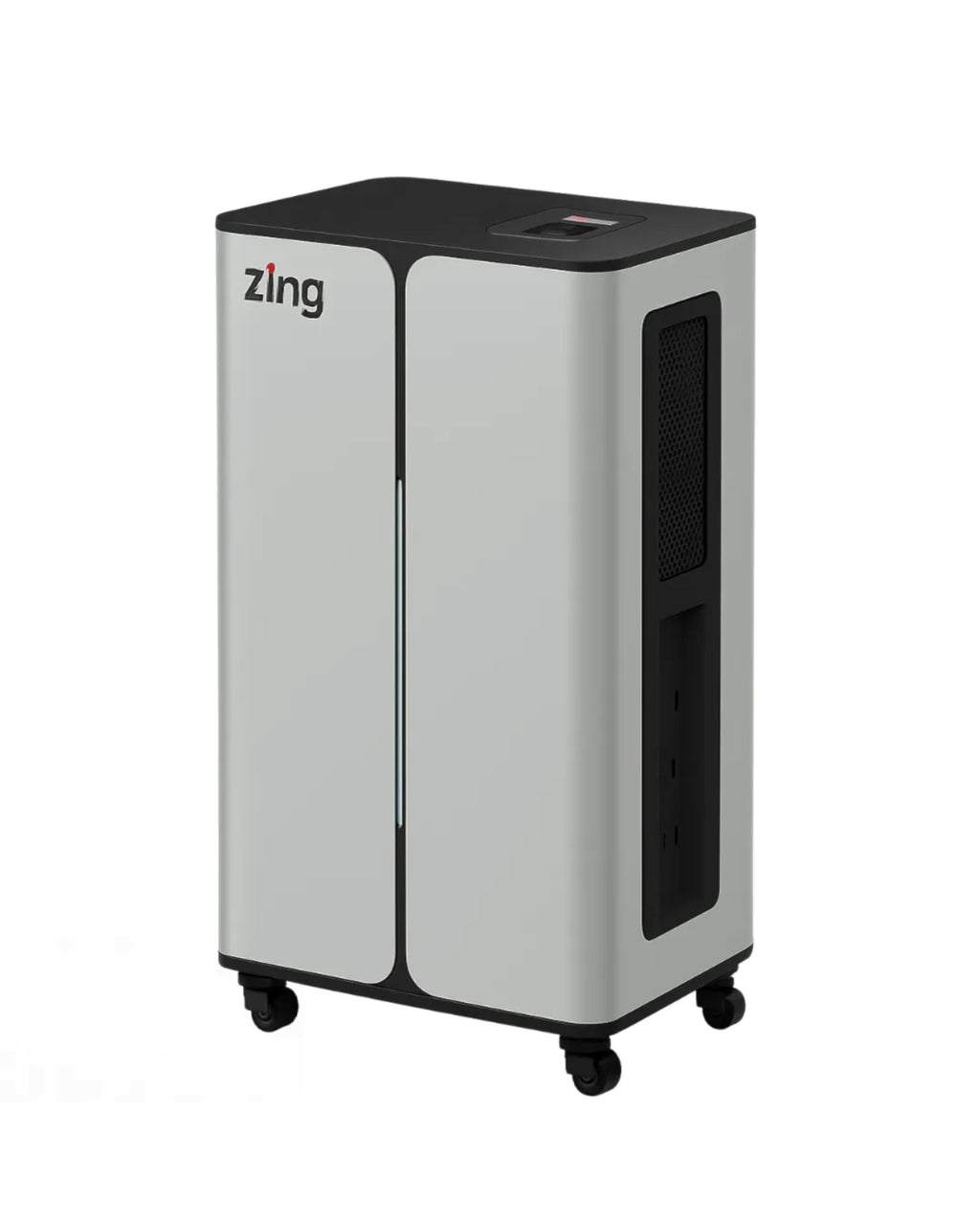

Smart Solar Power Backup System (6kW / 8kW / 11kW)

The ZING Hybrid Portable Energy Storage Inverter is an advanced all-in-one solar energy solution designed to provide reliable power backup for homes and businesses. Combining a hybrid inverter, lithium battery storage, MPPT solar charger, and smart energy management system, this portable energy system ensures continuous electricity even during grid failures.

With its compact portable design and integrated wheels, the system is easy to install and move, making it ideal for modern smart homes, offices, and backup power applications.

All-in-One Solar Energy System

Combines solar inverter, lithium battery storage, and MPPT charger in a single compact unit.

Reliable Power Backup

Automatically supplies power during grid outages with fast switching capability.

High Efficiency MPPT Charging

Advanced MPPT solar controller maximizes solar energy harvesting for efficient charging.

Large Battery Storage

Supports lithium battery modules with capacity up to 15.36kWh.

Portable Design

Integrated wheels and compact structure allow easy movement and flexible installation.

Multiple Charging Options

Supports solar, grid, and generator charging for maximum flexibility.

Intelligent Protection System

Built-in safety protections including:

Over-charge protection
Over-discharge protection
Short circuit protection
Over-temperature protection
Over-current protection

Inverter Specifications

Rated Output Power: 6kW / 8kW / 11kW
Output Voltage: 230V AC
Output Waveform: Pure Sine Wave
Output Frequency: 50Hz / 60Hz
Total Charging Current (Grid + Solar): Up to 150A
Low DC Warning Voltage: 45.8V
Low DC Cut-off Voltage: 44.8V
Bulk Charging Voltage: 57.6V
Float Charging Voltage: 56V

Battery Specifications

Battery Type: Lithium Iron Phosphate (LiFePO4)
Nominal Battery Voltage: 51.2V
Battery Capacity Options: 6kW Model: 10.24kWh / 8kW Model: 15.36kWh / 11kW Model: 15.36kWh
Maximum Charge Current: 6kW Model: 225A / 8kW Model: 300A / 11kW Model: 300A
Maximum Discharge Current: 6kW Model: 150A / 8kW Model: 200A / 11kW Model: 200A
Operating Voltage Range: 44.8V – 58.4V
Operating Temperature: -10°C to 50°C

Solar Charging Specifications

Nominal PV Voltage: 360V
MPPT Voltage Range: 120V – 450V
Maximum PV Open Circuit Voltage: 500V
Solar Charging Current: 6kW Model: 120A / 8kW Model: 150A / 11kW Model: 150A
Maximum PV Input Power: 6kW Model: 8000W / 8kW Model: 12000W / 11kW Model: 12000W

AC Input Specifications

Nominal Input Voltage: 230VAC
Low Loss Voltage: 170VAC ±7 (UPS) / 90VAC ±7 (Appliances)
High Loss Voltage: 280VAC ±7
Maximum AC Input Voltage: 300VAC
AC Charging Current: 6kW Model: 120A / 8kW Model: 150A / 11kW Model: 150A

Performance

Efficiency: Up to 92%
Noise Level: <55dB (1 meter)
Humidity: 0–95% (non-condensing)
Maximum Operating Altitude: 1500m

Applications

The ZING hybrid portable inverter is suitable for:

Residential solar power systems
Home backup power solutions
Off-grid solar installations
Small commercial energy storage
Emergency power backup
Smart solar homes

Solar Generators

Shop now

Solar Panels

Shop now

Frequently asked questions

A hybrid portable energy storage inverter is an all-in-one solar power system that combines a solar inverter, lithium battery storage, and MPPT solar charger in one unit. It allows solar panels to charge batteries and power your home while also providing backup power during electricity outages.

Yes. The ZING hybrid inverter automatically switches to battery backup mode during power failures, ensuring uninterrupted electricity supply for essential appliances such as lights, fans, refrigerators, and electronics.

The inverter supports a maximum solar input of up to 12kW PV power depending on the model. The solar panels must operate within the MPPT voltage range of 120V–450V to ensure optimal charging performance.

The system uses Lithium Iron Phosphate (LiFePO4) batteries, which are known for their long lifespan, high safety, deep cycle capability, and stable performance. These batteries typically offer over 6000 charge cycles.

The ZING portable hybrid inverter can be installed in homes, offices, shops, and small commercial buildings. Its compact design with wheels makes it easy to move and install indoors without complex setup.
